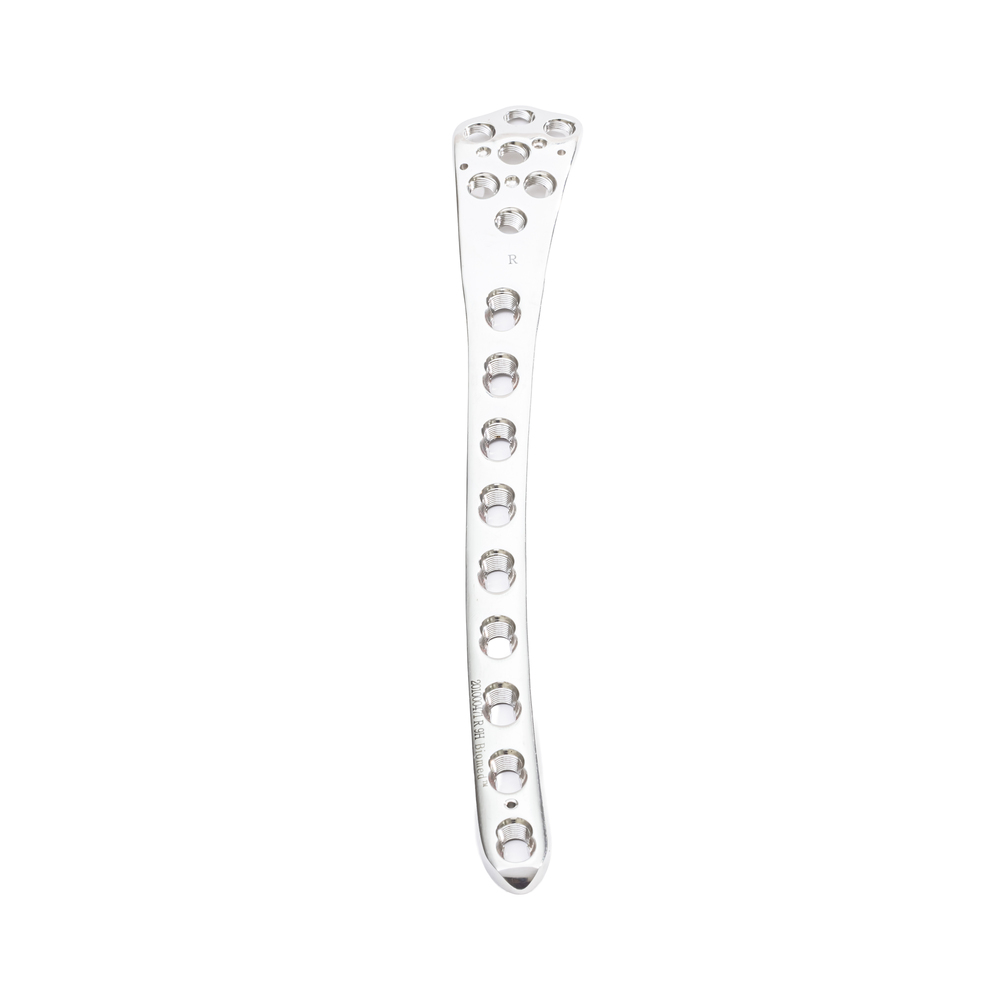

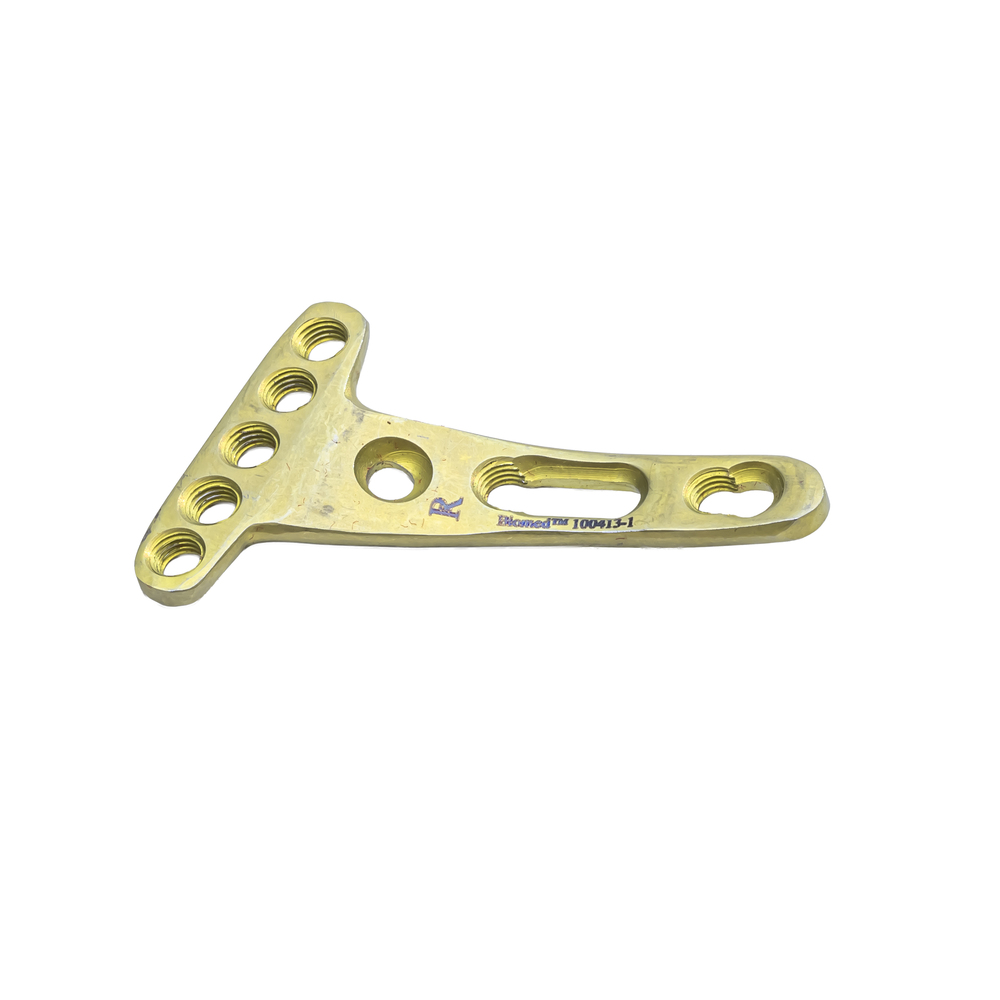

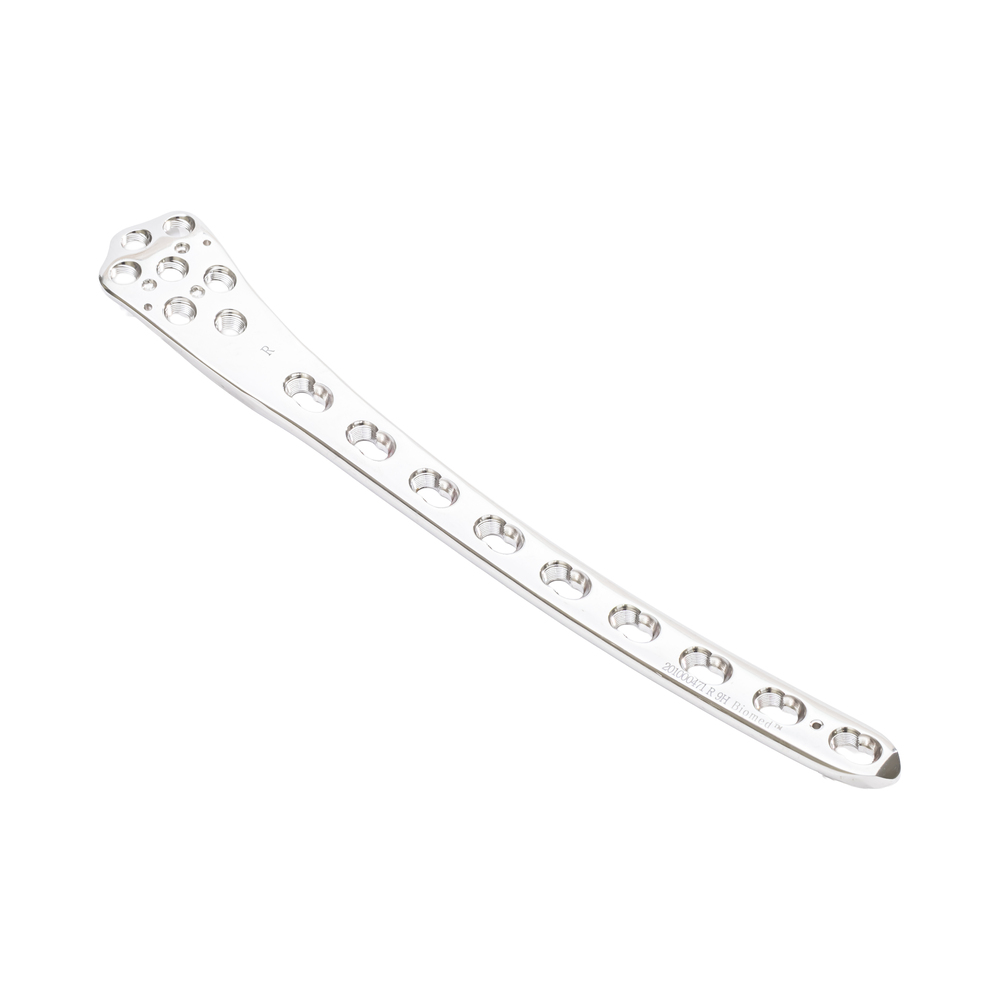

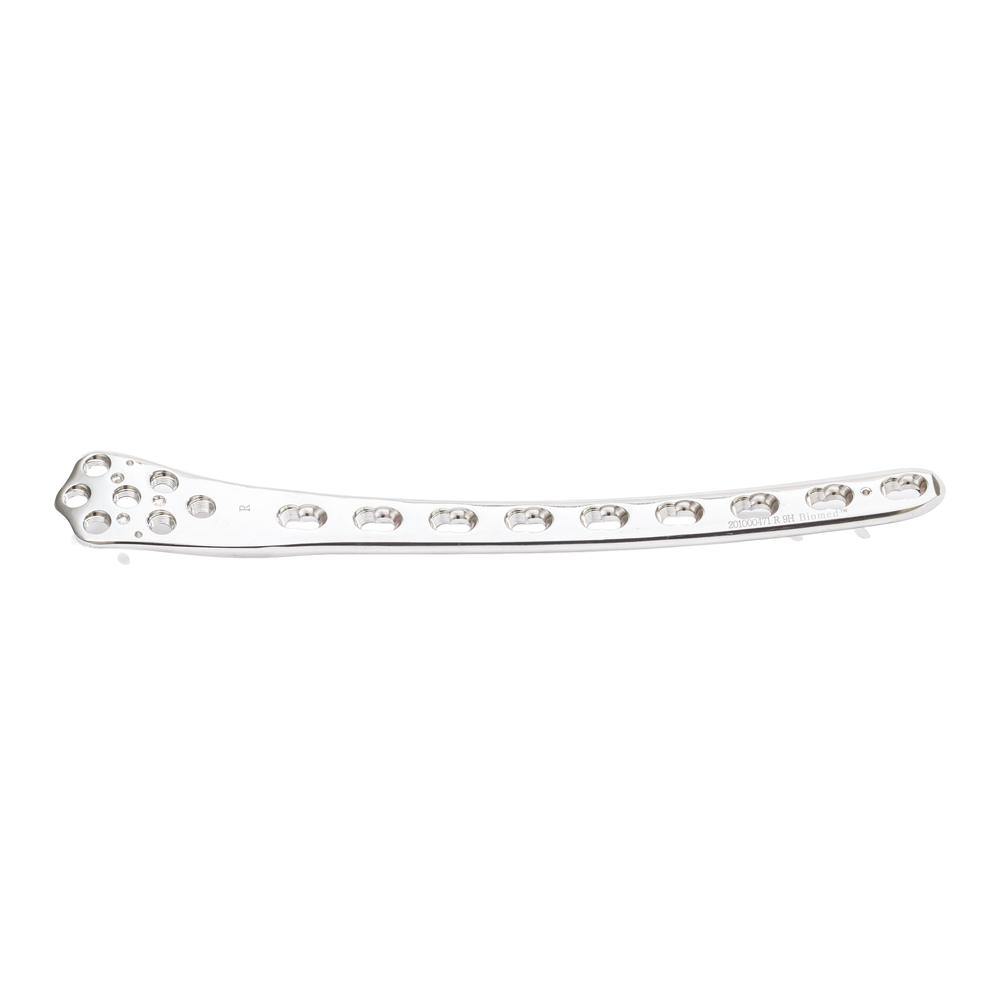

Orthopedic Locking Plate

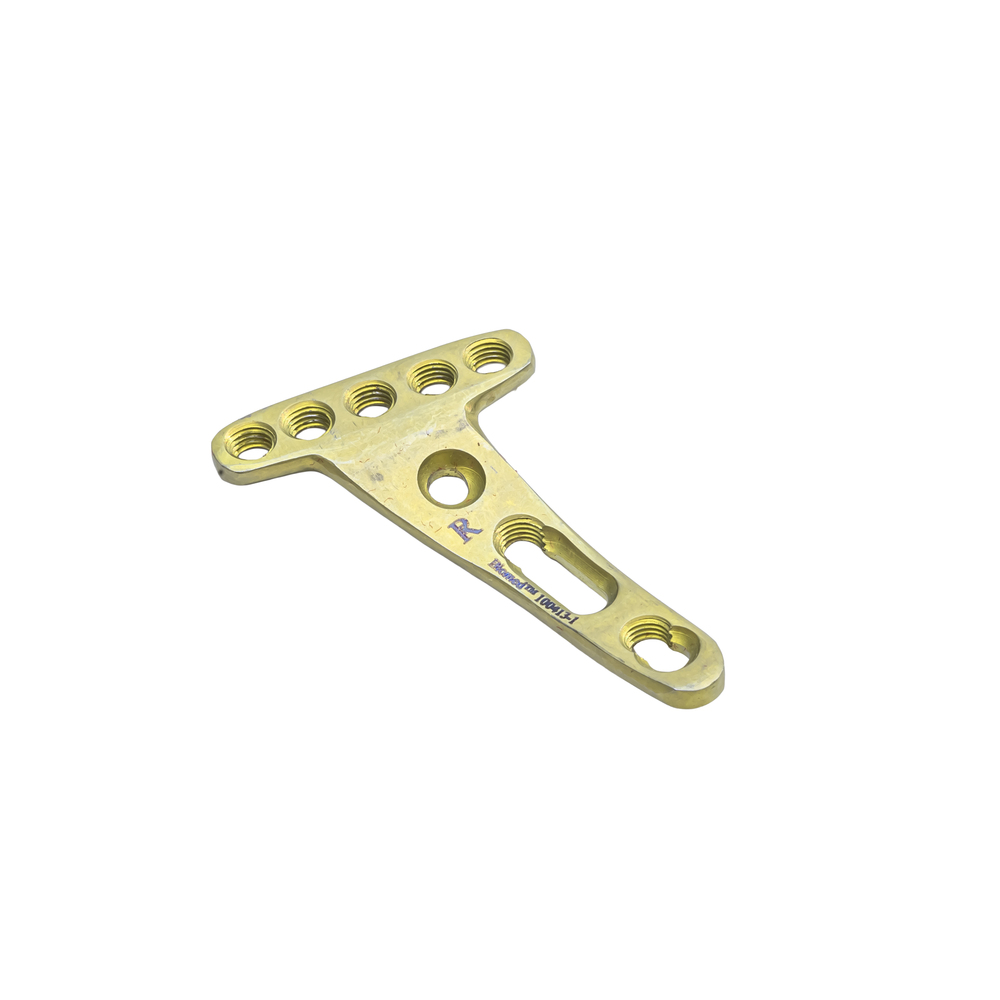

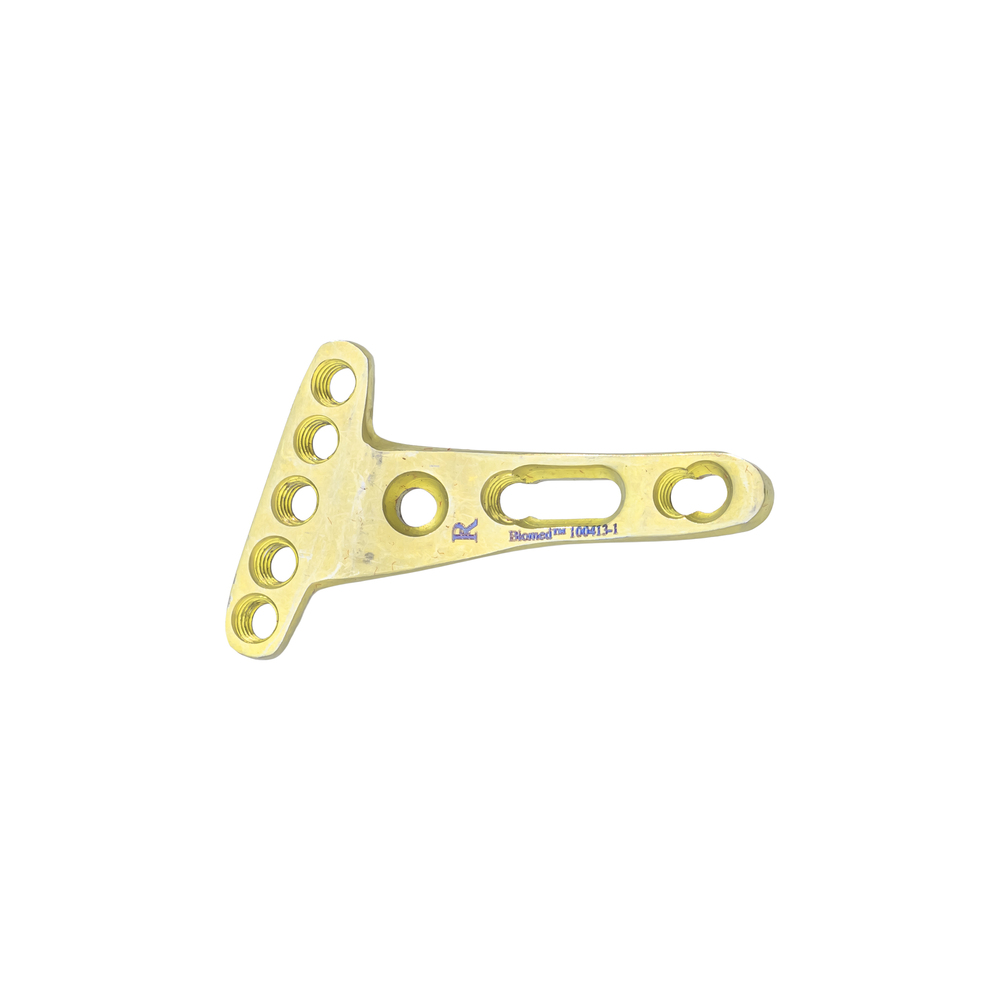

• Attachment
• 2.4mm Locking and Cortical Screws

• Color
• Metallic silver or anodized

• Curved Angle
• Designed to fit volar distal radius anatomy

• Diameter
• Screw diameter: 2.4mm

• Dimension (L*W*H)
• Varies by model (commonly 3-10 holes, lengths approx. 57-104 mm, width approx. 16-21 mm)

• Flexible
• No

• Grade
• Surgical (Medical) Grade

• Head Diameter
• Screw head diameter: approx. 4.2 mm

• Implants Type
• Other, Orthopedic Plate

• Length
• Plate: varies; Screws: 8-35 mm

• Material
• Other, Stainless Steel or Titanium

• Physical Shape
• Other, Anatomically Contoured Plate

• Recommended For
• Other, Fracture Fixation of Distal Radius

• Recyclable
• Other, Yes (if stainless steel)

• Soluble
• No

• Stent Location
• Distal Radius (Volar Side)

• Sterilization Mode
• Gamma Irradiation / Autoclave

• Sterilized
• Yes

• Usage
• Surgical Orthopedic Implant

• Weight
• Lightweight, model dependent

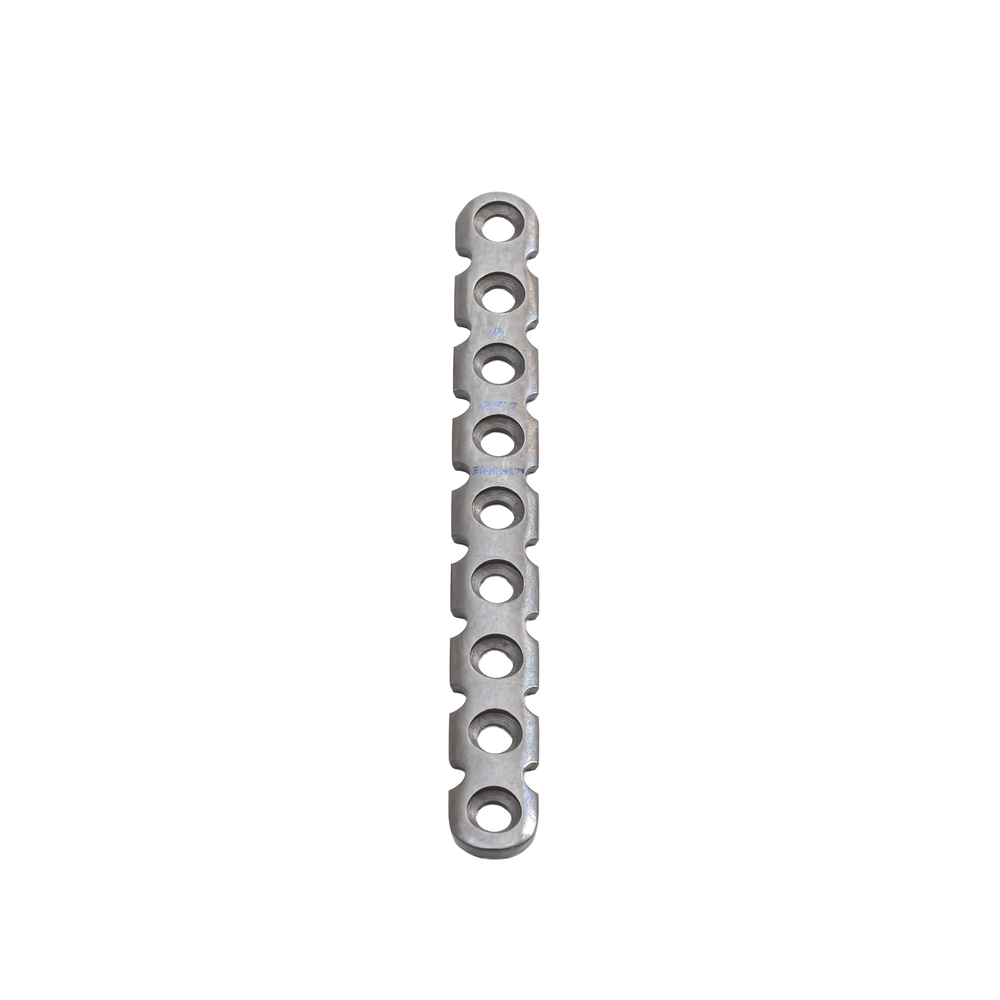

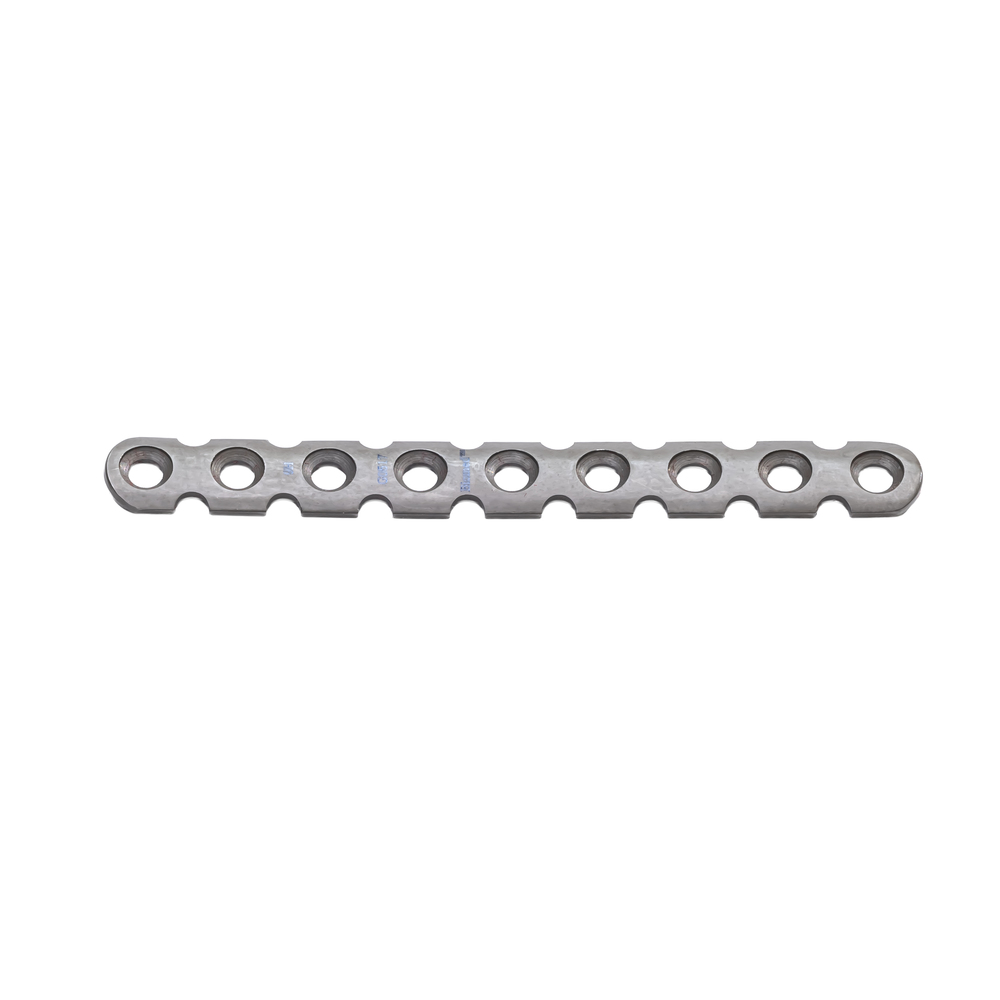

• Attachment
• Screw Fixation

• Color
• Metallic Silver

• Curved Angle
• Manually Pre-Bendable (Flexible)

• Diameter
• Holes: 3.5 mm, 4.5 mm or as required

• Dimension (L*W*H)
• Customizable; Common lengths: 50-300 mm, Width: 8-12 mm, Thickness: ~3-5 mm

• Flexible
• Other, Yes, can be contoured

• Grade
• Titanium Grade 2 or Grade 5 (Ti-6Al-4V)

• Head Diameter
• Screw Head Compatibility

• Implants Type
• Other, Orthopedic Implant

• Length
• Customizable as per surgical needs

• Material
• Titanium

• Physical Shape
• Other, Straight with Holes (Reconstruction Plate)

• Recommended For
• Other, Fracture Fixation, Bone Reconstruction

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Bone (Orthopedic Surgery)

• Sterilization Mode
• Autoclave or Gamma Irradiation

• Sterilized
• Yes

• Usage
• Internal Bone Fixation

• Weight
• Variable (according to size)

• Attachment
• Locking/Non-locking screws

• Color
• Metallic Silver (Titanium may appear light grey)

• Curved Angle
• Anatomically contoured (varies by plate application)

• Diameter
• Screw hole diameter: 4.5 mm (standard); Plate thickness varies

• Dimension (L*W*H)
• Varies (common range: L 60-160 mm x W 10-15 mm x H 2.5-4 mm)

• Flexible
• No

• Grade
• Surgical/Medical Implant Grade

• Head Diameter
• Screw head diameter: 7 mm (standard)

• Implants Type
• Other, Orthopedic Bone Plate

• Length
• Plate length: 60-160 mm

• Material
• Other, Stainless Steel (Medical Grade 316L) / Titanium Alloy

• Physical Shape
• Other, Rectangular plate with multiple holes

• Recommended For
• Other, Fracture fixation, bone reconstruction

• Recyclable
• No

• Soluble
• No

• Stent Location
• Orthopedic Surgery (Bone fixation)

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Internal bone Fixation during orthopedic procedures

• Weight
• Approximately 15-40 grams (depends on size/model)

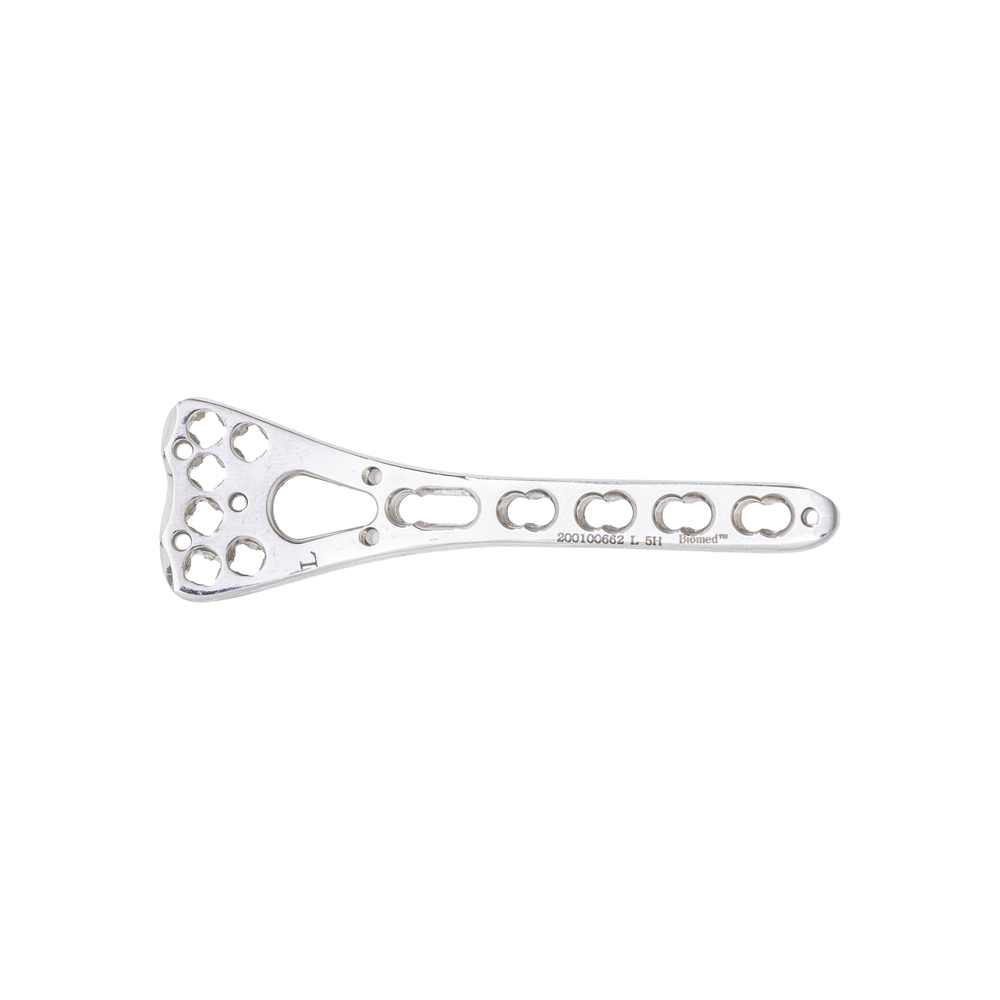

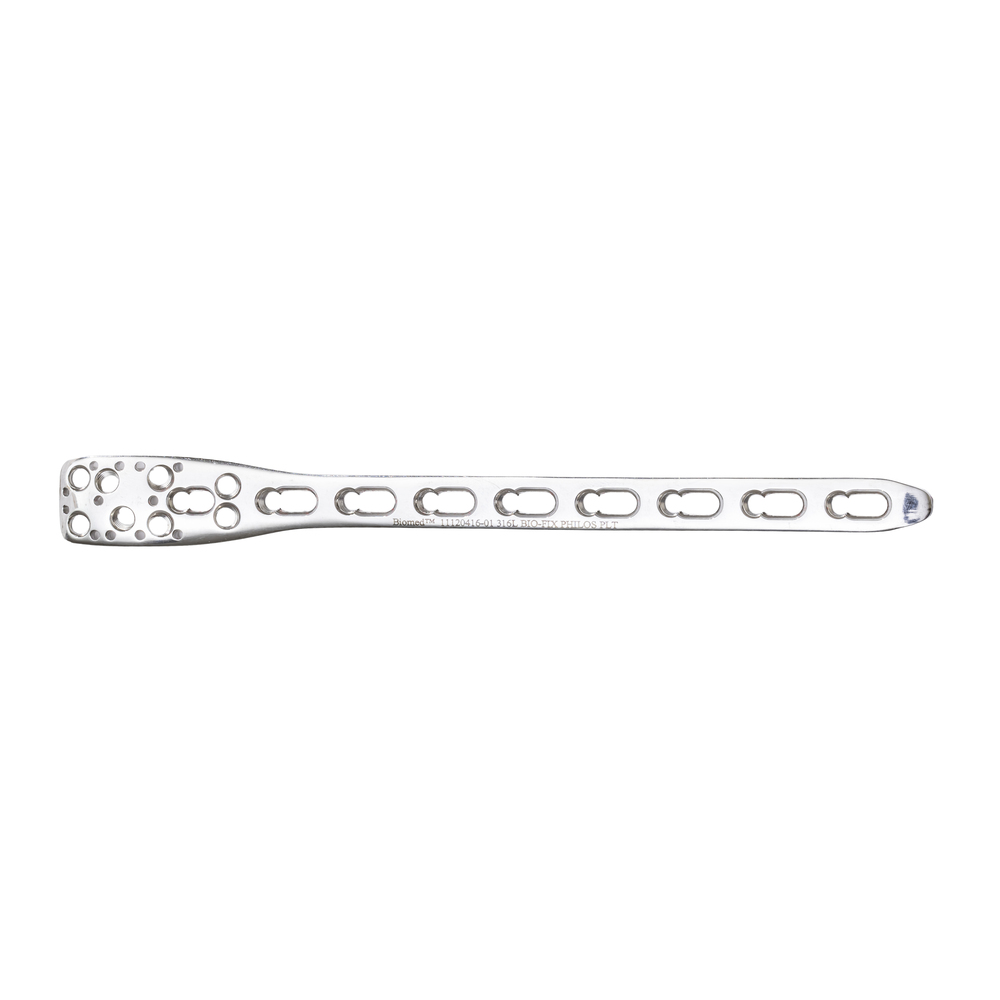

• Attachment
• Locking holes for locking screws; combination of locking and standard screws

• Color
• Metallic Silver

• Curved Angle
• Pre-contoured for volar distal radius anatomy (approx. 20-30 as per design)

• Diameter
• Screw holes compatible with 2.4mm, 2.7mm, or 3.5mm screws

• Dimension (L*W*H)
• Available sizes typically range from 3- to 7-hole plates; width approx. 20-25mm; thickness approx. 2-3mm

• Flexible
• Other, No; Rigid Plate

• Grade
• Medical Grade Stainless Steel

• Head Diameter
• Locking screw head diameter approx. 6.0mm

• Implants Type

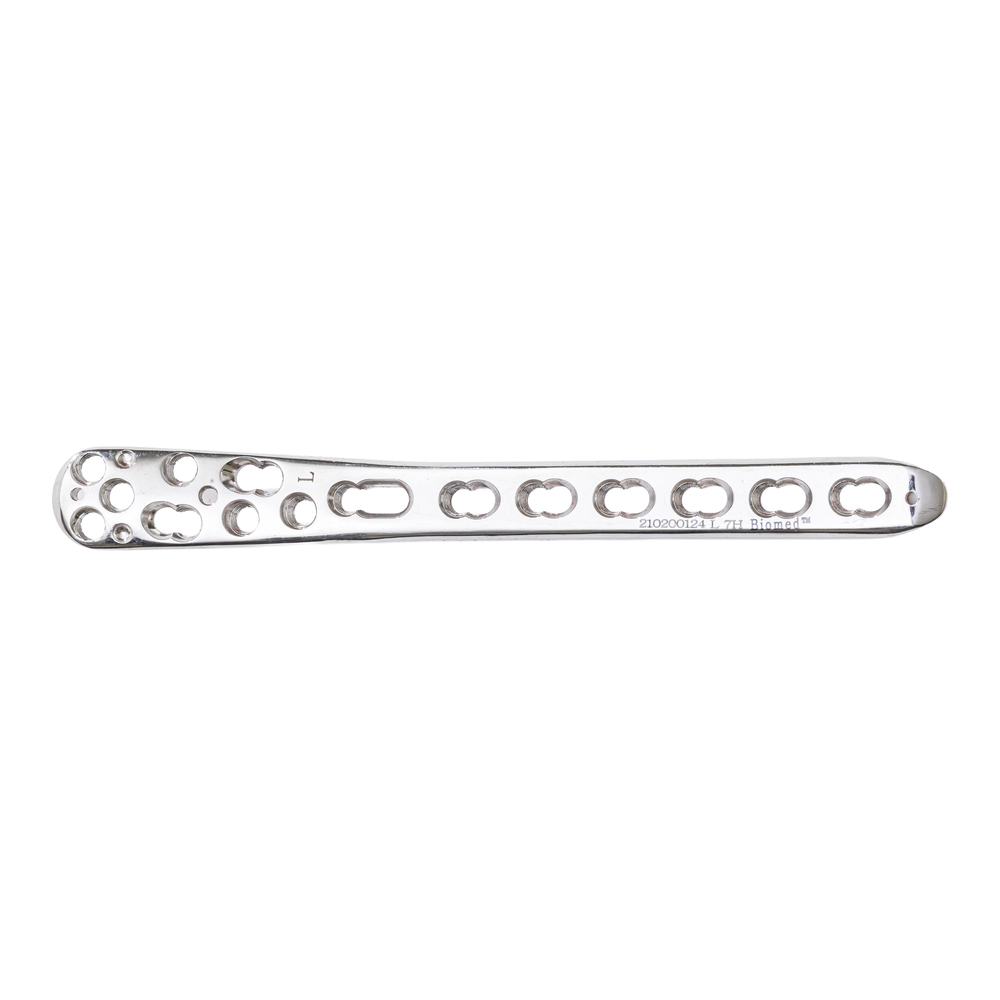

• Other, Orthopedic plate for distal radius fractures

• Length
• Varies by hole count; typical length range 50-120mm

• Material
• Other, Stainless Steel (SS 316L/316LVM)

• Physical Shape
• Other, Anatomically contoured volar plate

• Recommended For
• Other, Distal radius fractures, intra-articular or extra-articular; Osteotomies; Comminuted fractures

• Recyclable
• Other, Yes (as per hospital protocols)

• Soluble
• No

• Stent Location
• Distal Radius (Volar aspect of forearm)

• Sterilization Mode
• Autoclave or Gamma Irradiation

• Sterilized
• Other, No (Non-Sterile; to be sterilized before use)

• Usage
• Single-use, internal fixation in orthopedic surgery

• Weight
• Varies with size, approx. 10-30 g

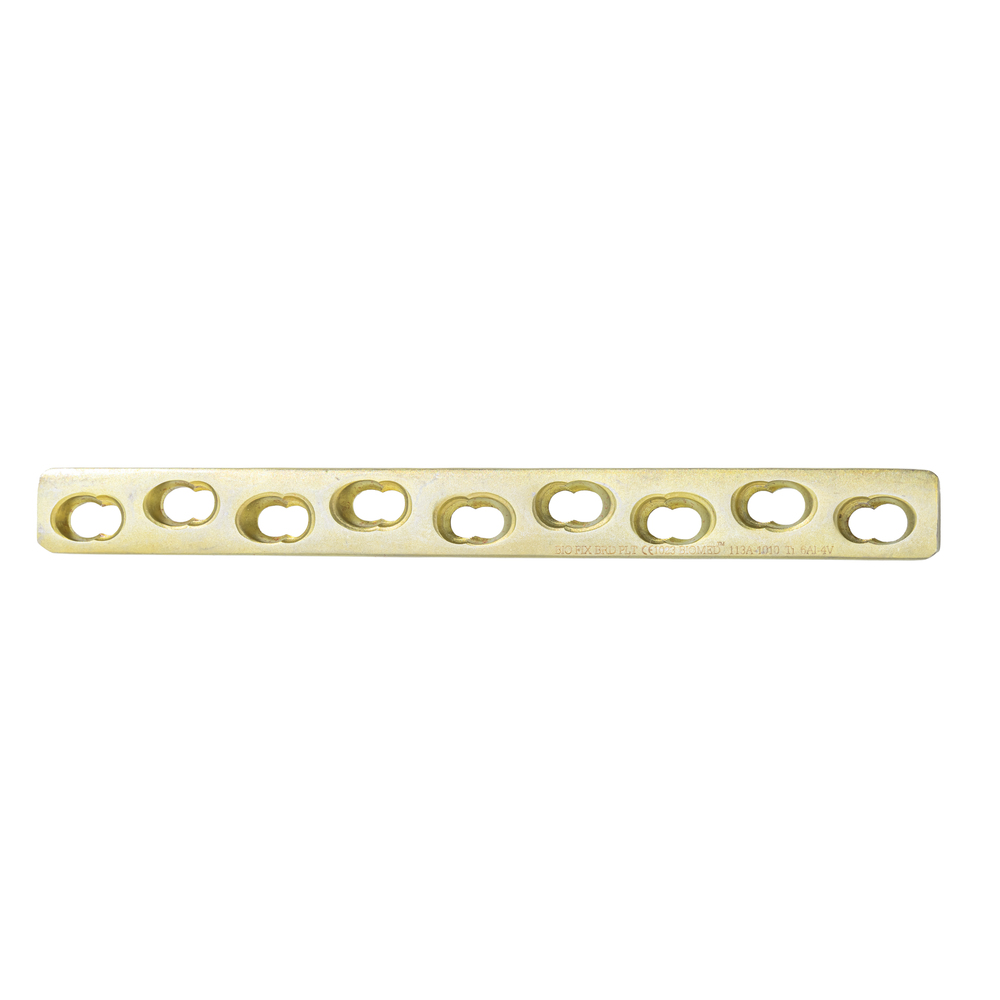

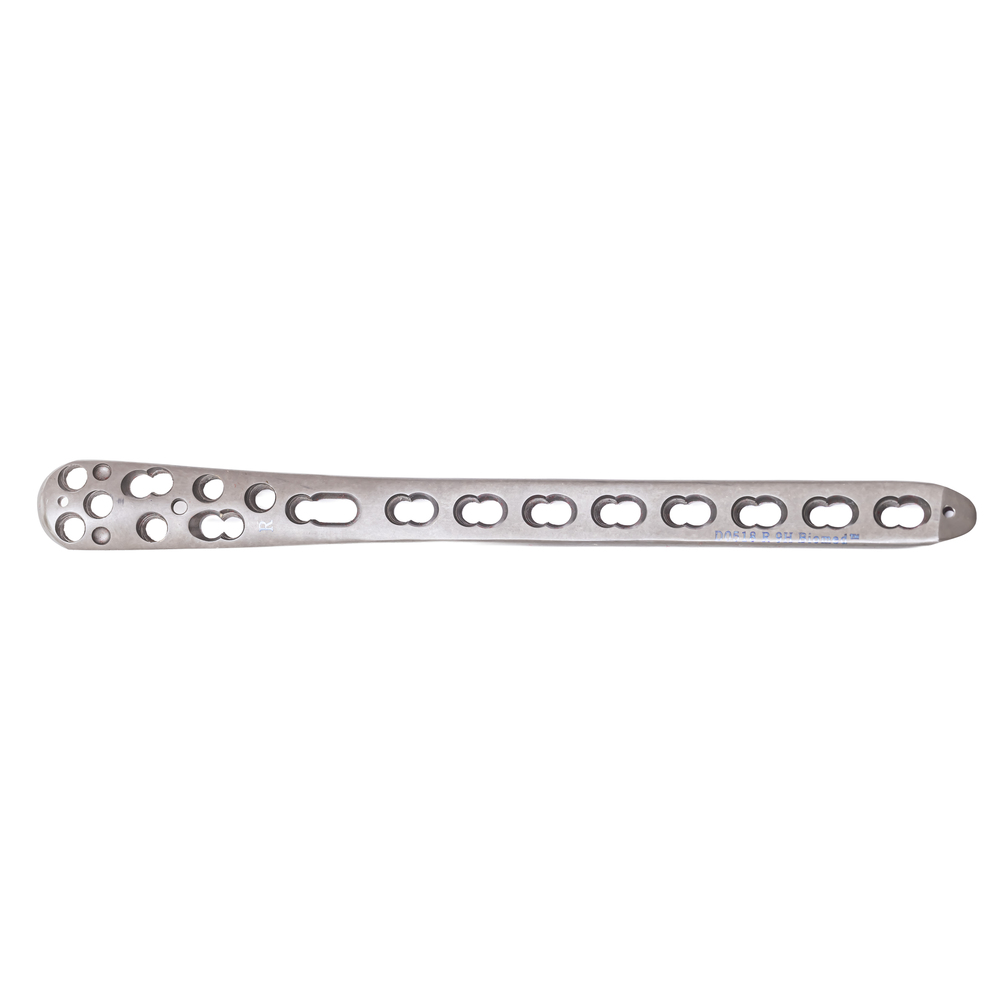

• Attachment
• Locking Screws

• Color
• Metallic Grey

• Curved Angle
• 5-20 anatomical pre-contour (varies per model)

• Diameter
• Screw hole diameter: 3.5 mm-4.5 mm

• Dimension (L*W*H)
• Varies - Commonly 4-hole, 6-hole, 8-hole, 10-hole, 12-hole versions; width 8 mm-15 mm, thickness 3.5 mm-4.5 mm

• Flexible
• No

• Grade
• Medical Grade Ti-6Al-4V (Titanium Alloy)

• Head Diameter
• Screw head fits: 4.0 mm-5.0 mm

• Implants Type
• Other, Orthopedic Locking Plate

• Length
• 40 mm-160 mm (customizable)

• Material
• Titanium

• Physical Shape
• Other, Rectangular/Curved (as per anatomical requirements)

• Recommended For
• Other, Fracture Fixation, Bone Reconstruction

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Long Bone Shaft, Proximal and Distal Metaphysis

• Sterilization Mode
• Gamma Ray

• Sterilized
• Yes

• Usage
• Orthopedic Surgery, Trauma Surgery

• Weight
• 15 g-45 g depending on size

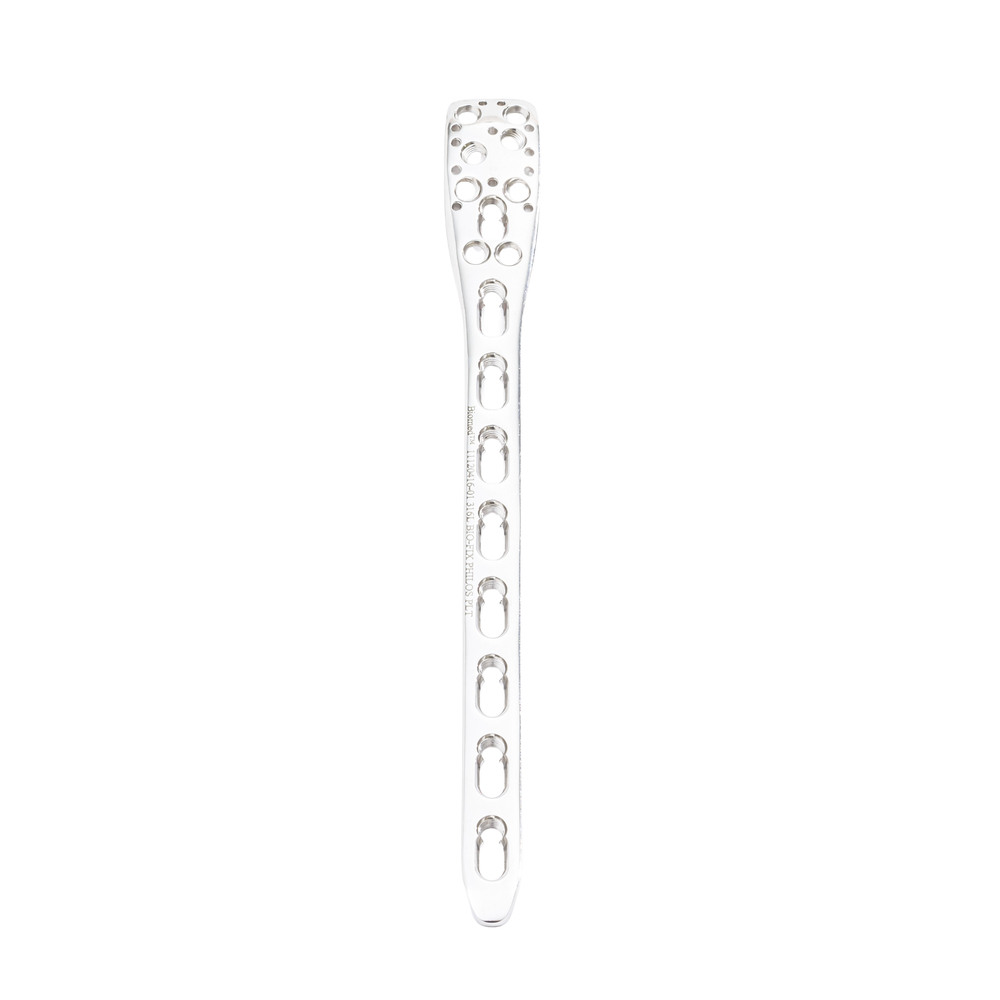

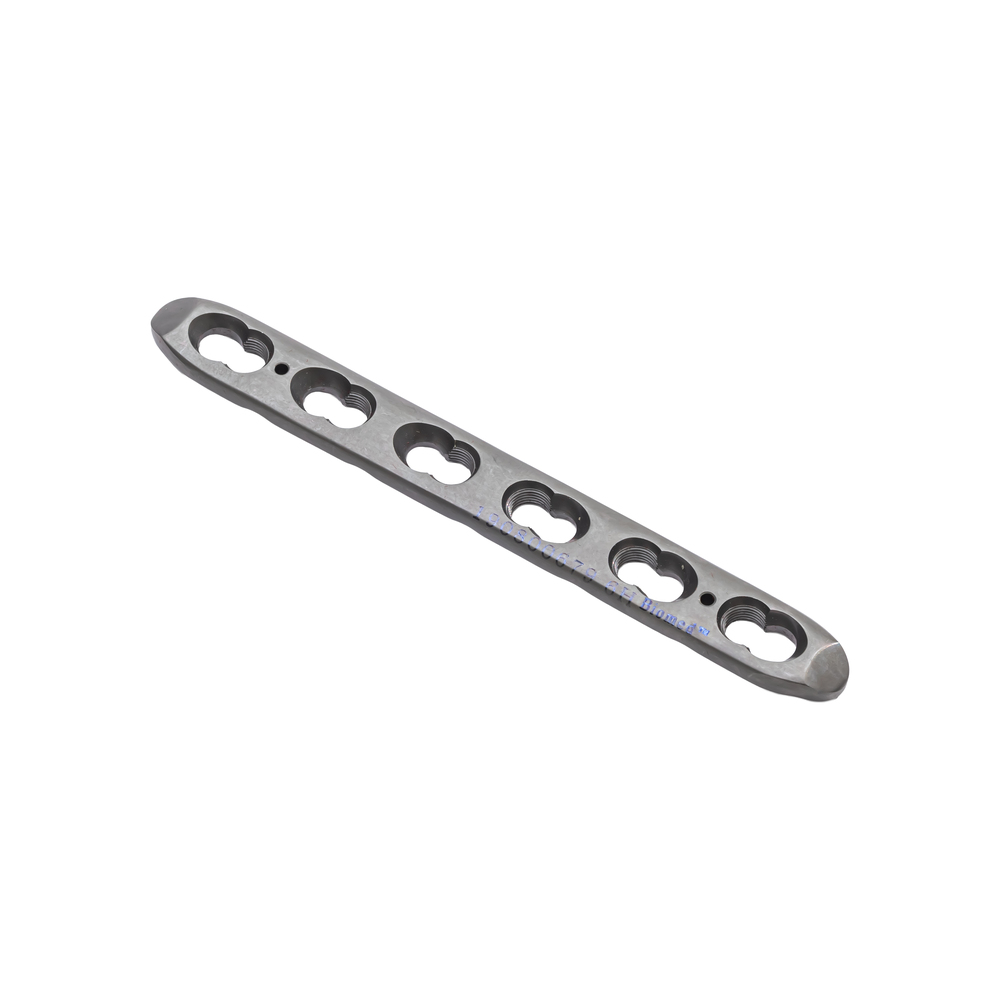

• Attachment
• Screw fixation

• Color
• Metallic silver/Grey

• Curved Angle
• Anatomically contoured

• Diameter
• Screw hole diameter 3.5 mm / 4.5 mm

• Dimension (L*W*H)
• Varies (Custom sizes: Length 4-16 holes, standard width and height)

• Flexible
• No

• Grade
• Medical Grade 316L Stainless Steel or Titanium

• Head Diameter
• N/A (Not applicable)

• Implants Type

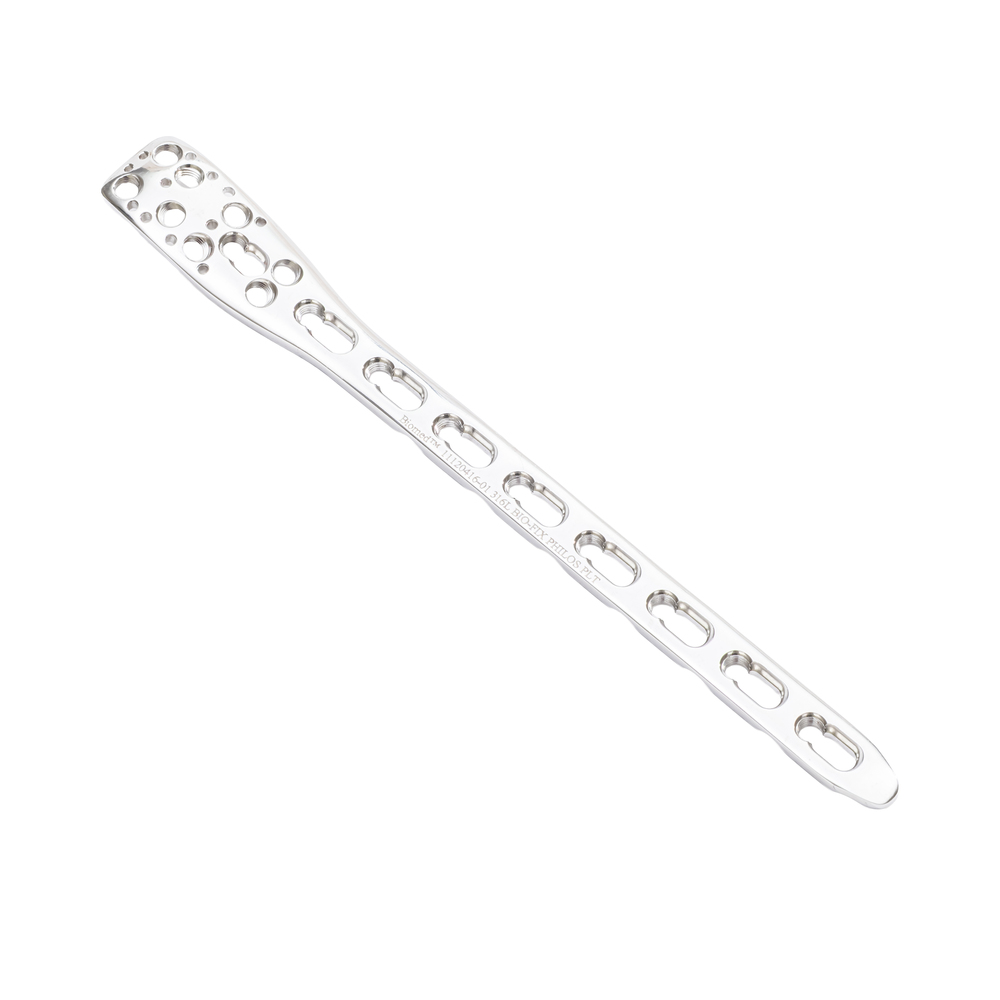

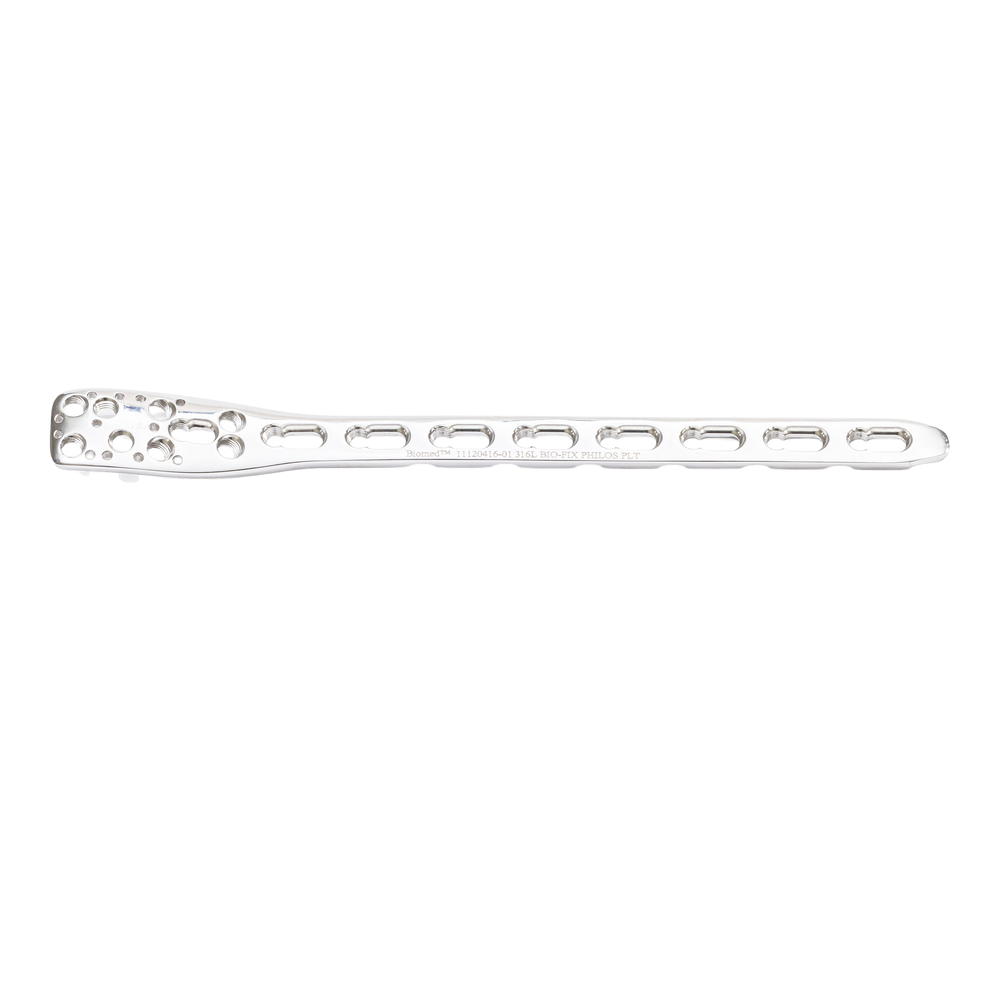

• Other, Orthopaedic Locking Compression Plate

• Length
• Varies (Typically 50 mm to 240 mm)

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Plate with multiple holes

• Recommended For
• Other, Internal bone fixation, fracture management

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Bone / Fracture Site

• Sterilization Mode
• Gamma, Autoclave

• Sterilized
• Yes

• Usage
• Orthopaedic surgery

• Weight
• Varies by size (Average 10-35g)

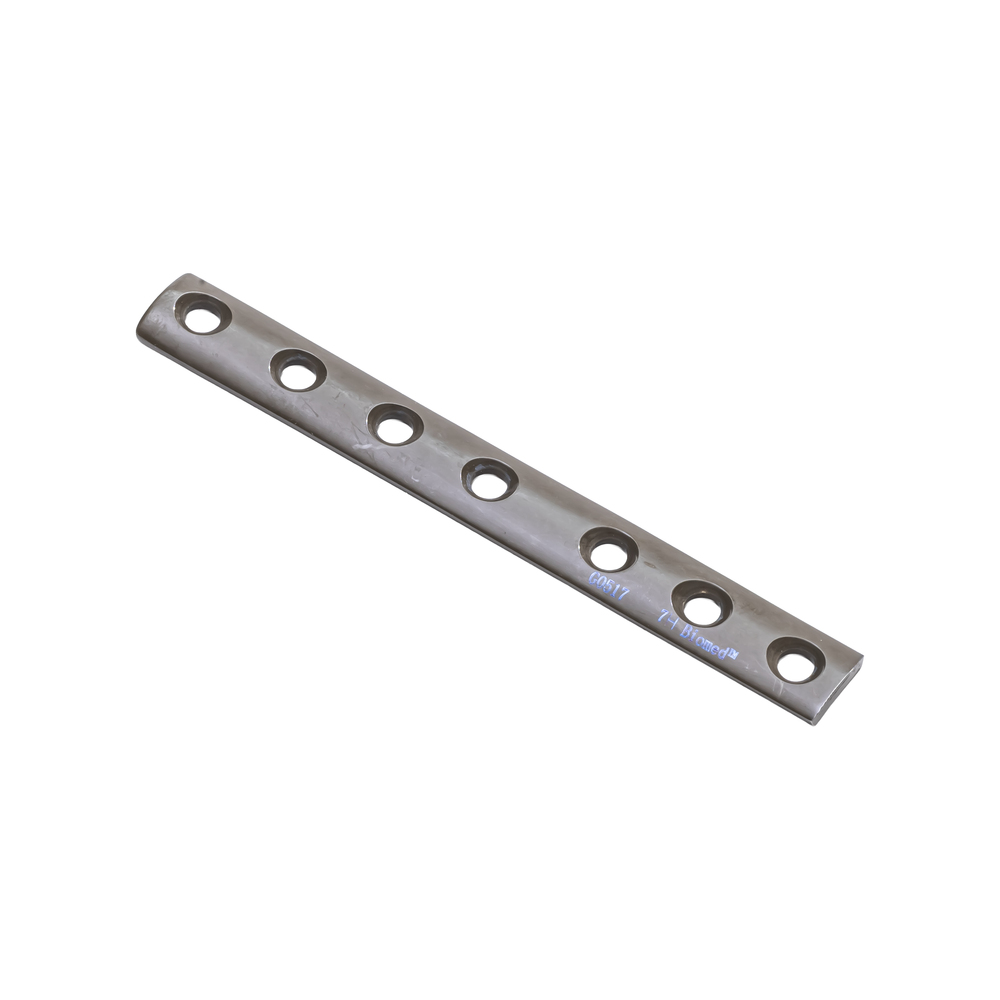

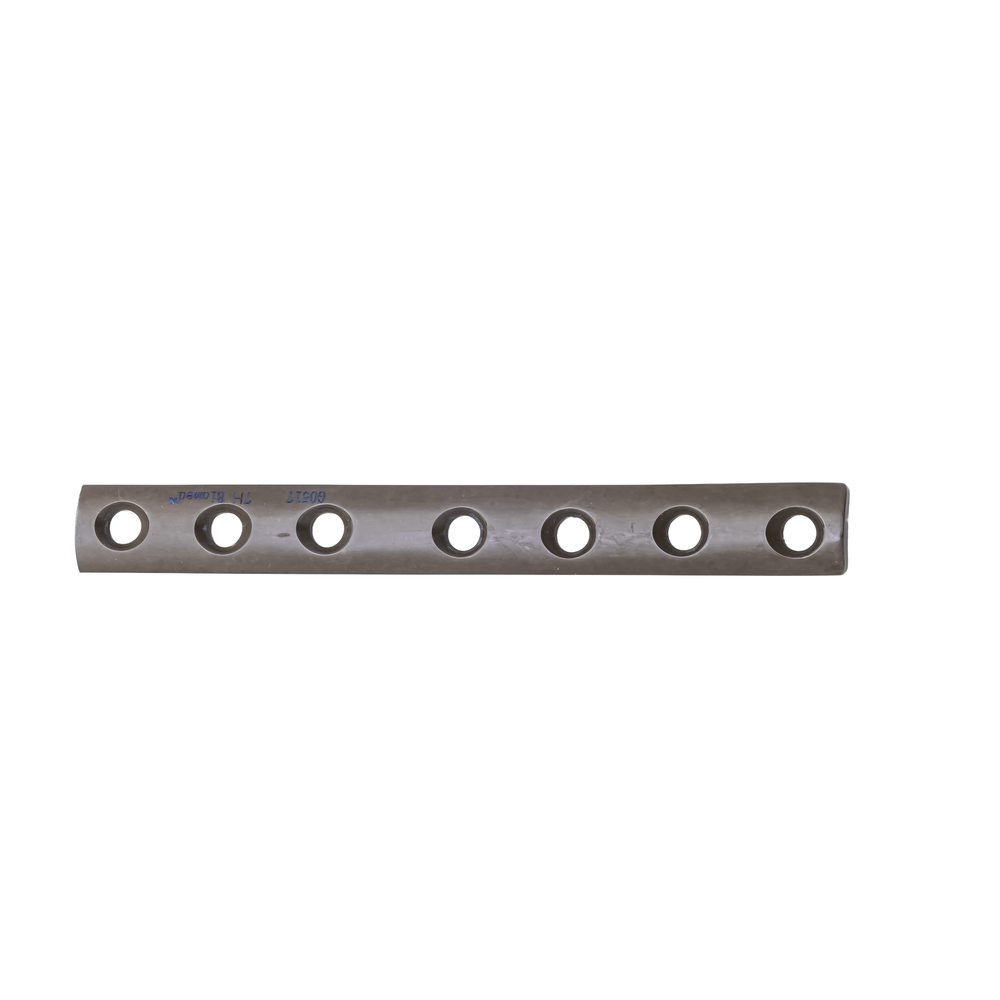

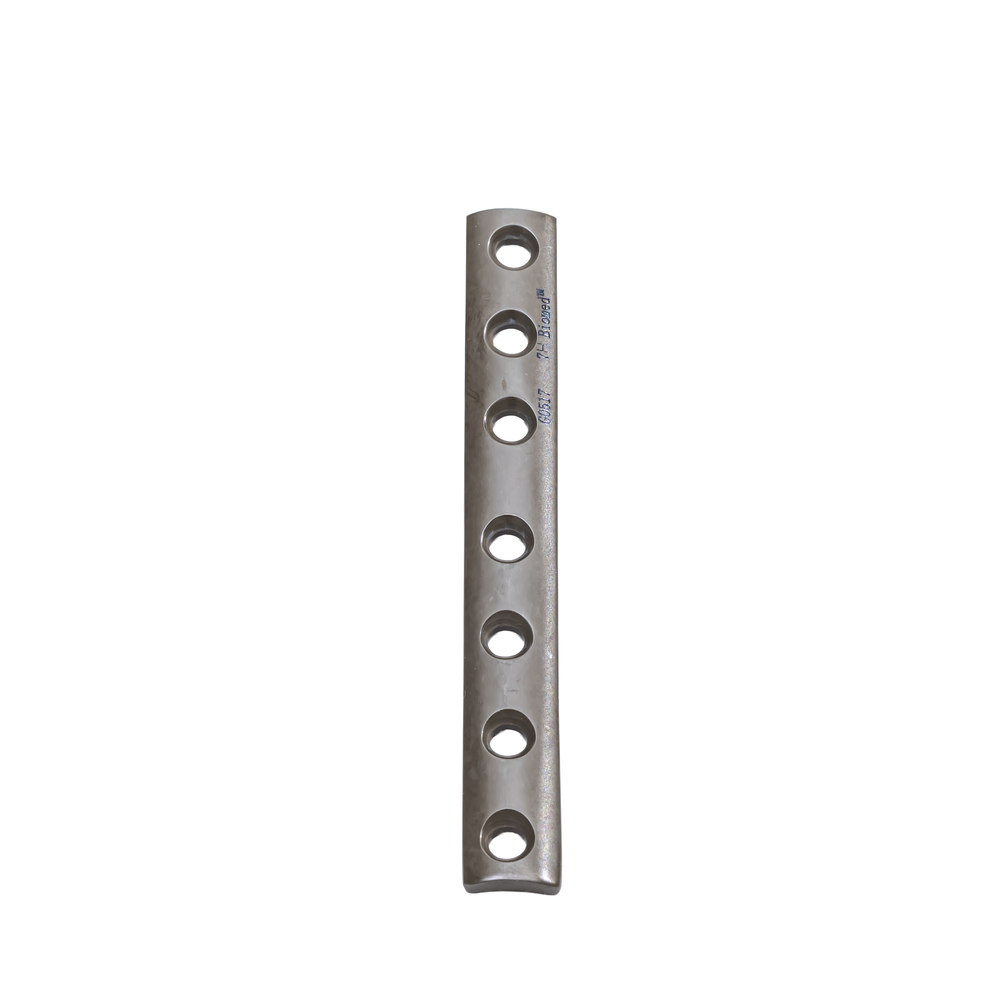

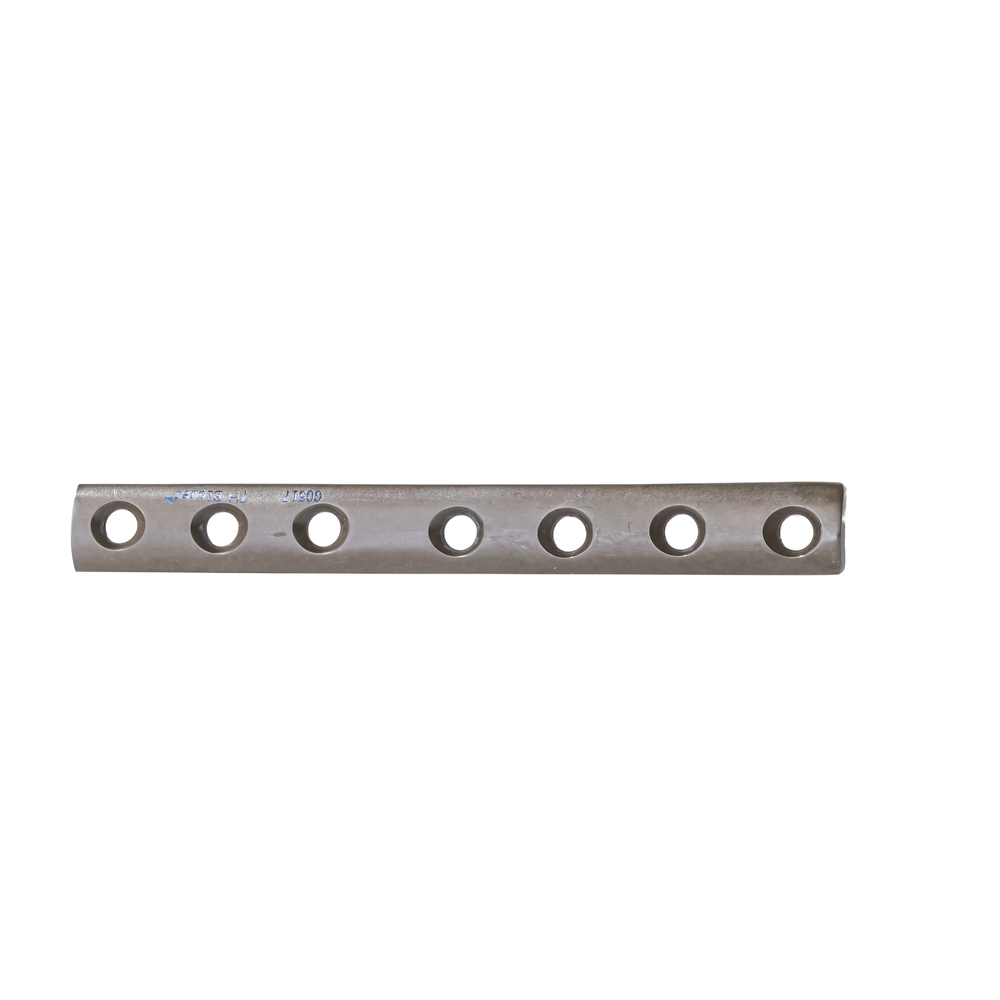

• Attachment
• Cortex Screws (3.5mm)

• Color
• Metallic (Natural/Titanium Tint)

• Curved Angle
• Pre-contoured to Bone Anatomy

• Diameter
• Hole Diameter 3.5 mm

• Dimension (L*W*H)
• Varies: Available in Lengths 4-16 Holes, Width 10 mm approx, Thickness 4 mm approx

• Flexible
• Other, Slightly Flexible for Contouring

• Grade
• Surgical Grade

• Head Diameter
• Screw Head Diameter 6 mm approx

• Implants Type
• Other, Orthopedic Implant

• Length
• Available Lengths: 60 mm - 240 mm

• Material
• Other, Stainless Steel 316L / Titanium Alloy

• Physical Shape
• Other, Narrow Plate with Compression Holes

• Recommended For
• Other, Fracture Fixation, Bone Reconstruction

• Recyclable
• No

• Soluble
• No

• Stent Location
• Long Bones (Femur, Tibia, Humerus)

• Sterilization Mode
• Gamma Radiation / EO Gas

• Sterilized
• Yes

• Usage
• Internal Fixation of Long Bone Fractures

• Weight
• Varies by Size (Approx. 15-45 g)

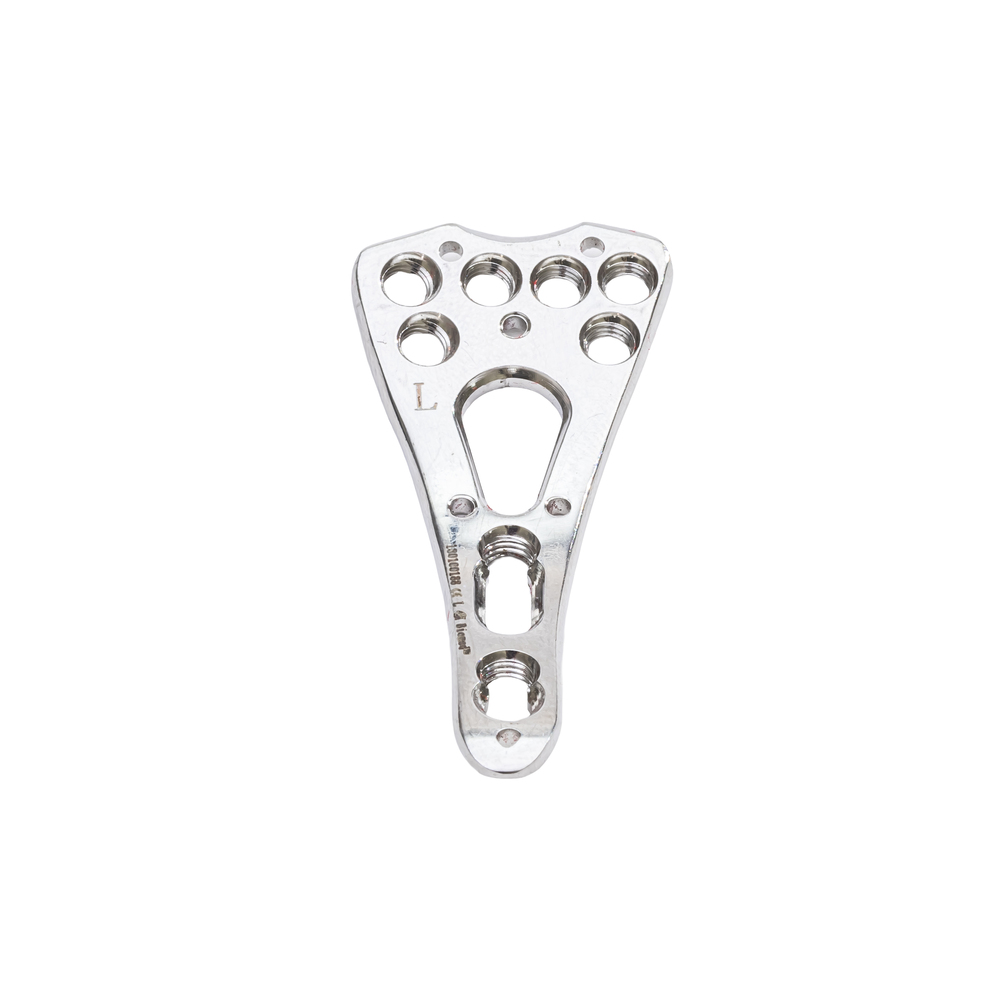

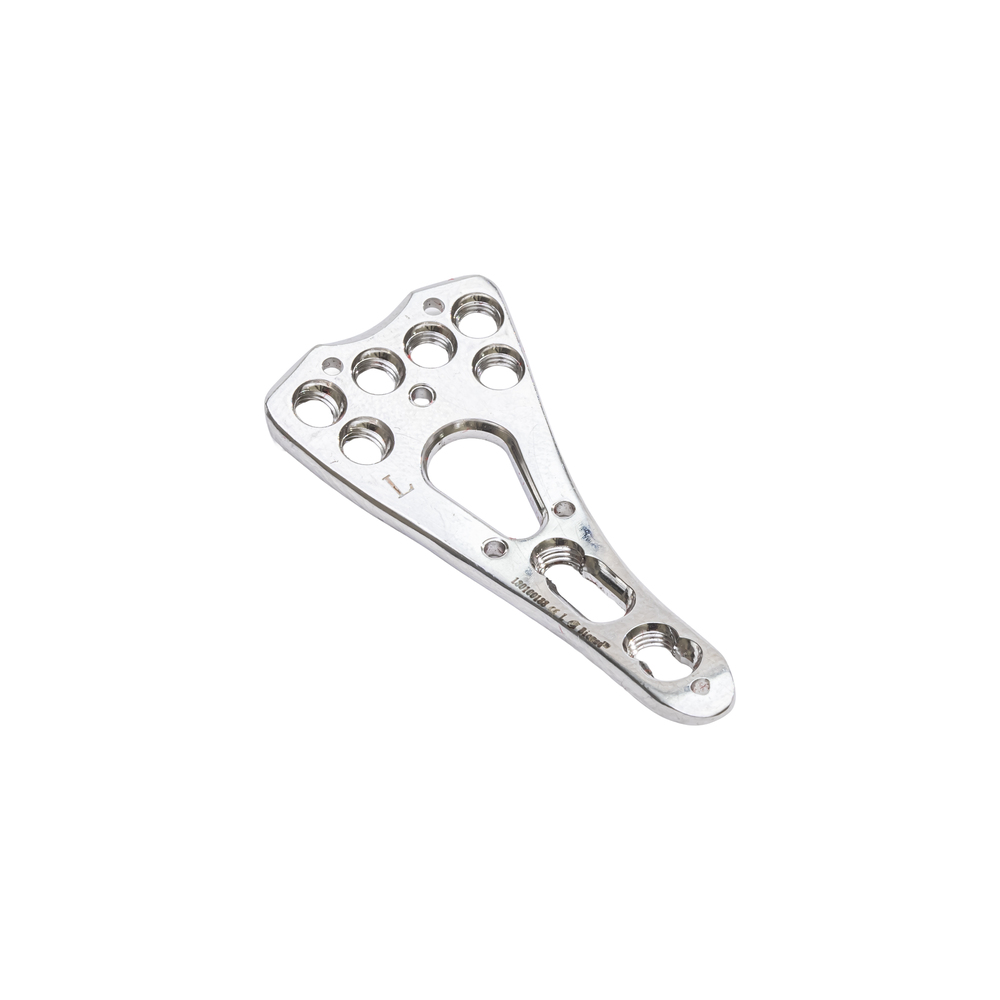

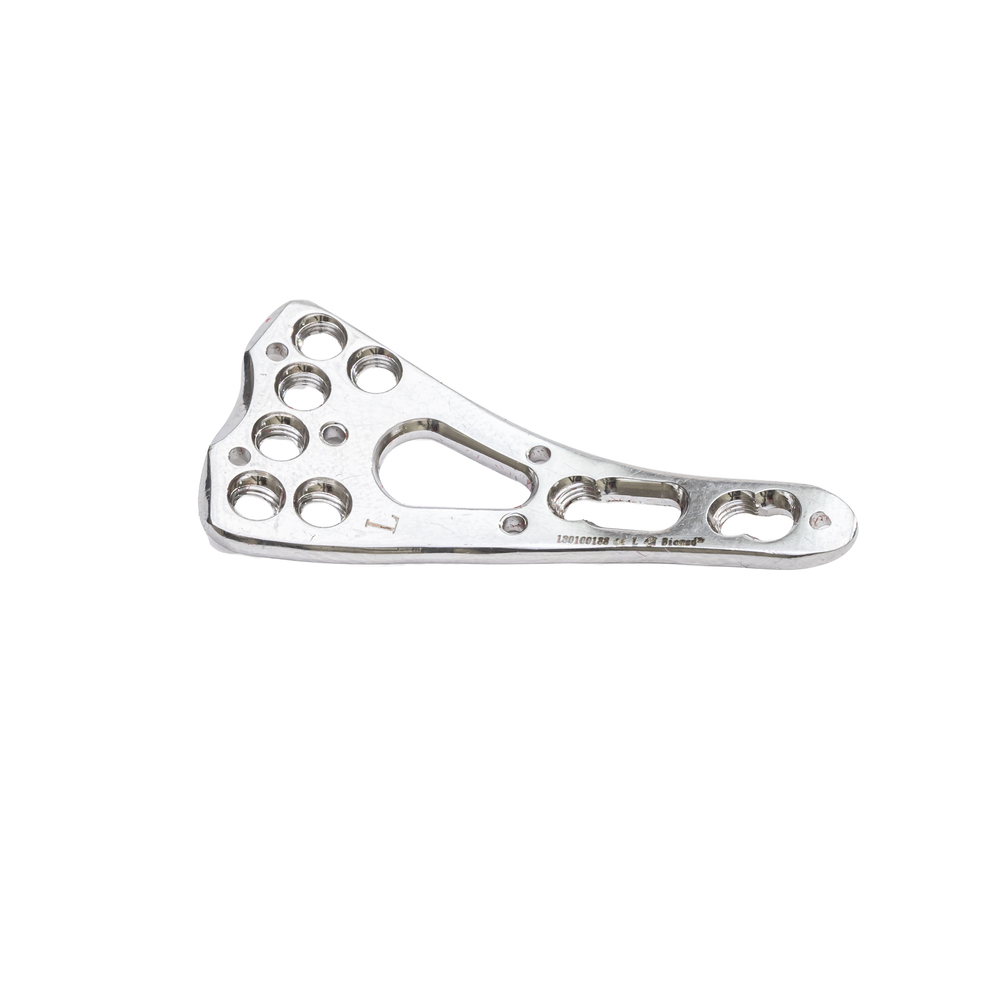

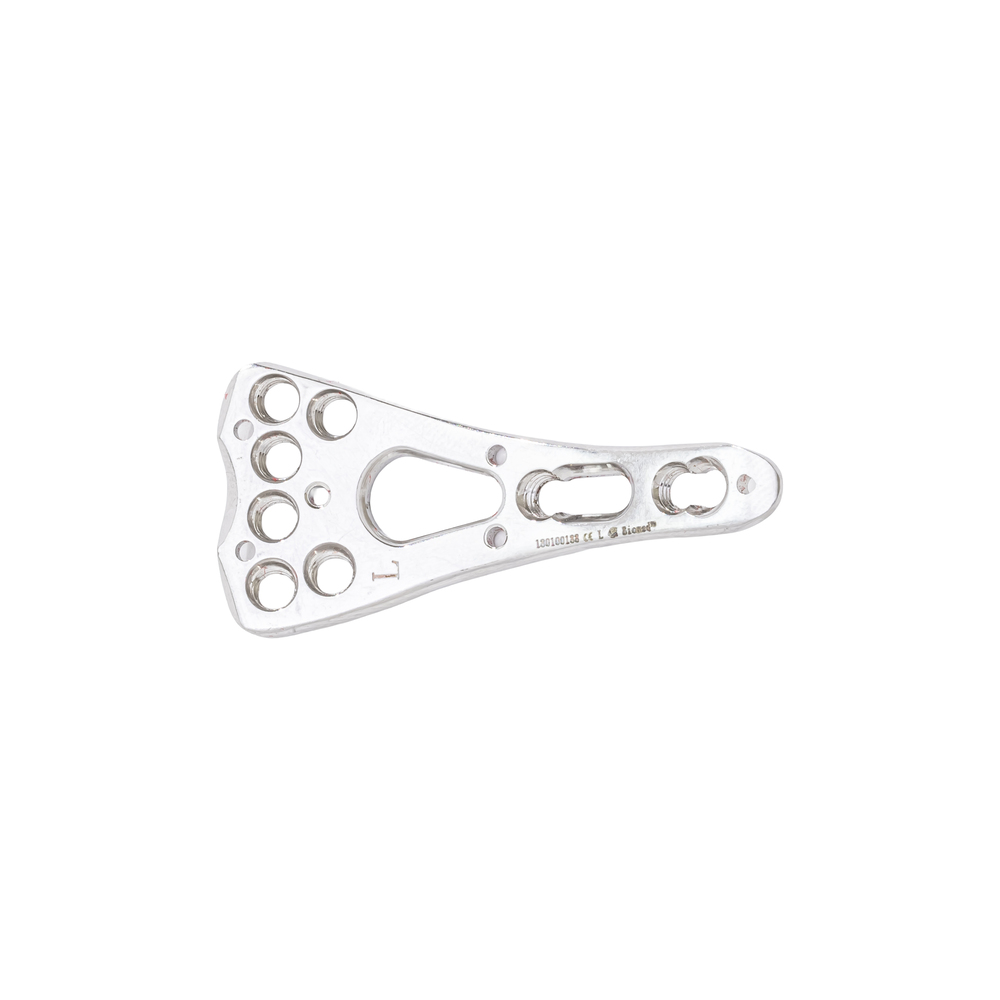

• Attachment
• With Locking/Non-Locking Screw Holes

• Color
• Metallic/Polished or Titanium Anodized

• Curved Angle
• Pre-contoured/Anatomic Fit

• Diameter
• Screw Holes for 2.4mm Screws

• Dimension (L*W*H)
• Mini (3-Hole), Thickness: 2.4mm

• Flexible
• No

• Grade
• Medical Grade

• Head Diameter
• N/A (Low-Profile Head Design)

• Implants Type
• Other, Orthopedic Implant Plate

• Length
• 3-Hole (Standard Length Variant)

• Material
• Other, Stainless Steel 316L / Titanium Alloy

• Physical Shape

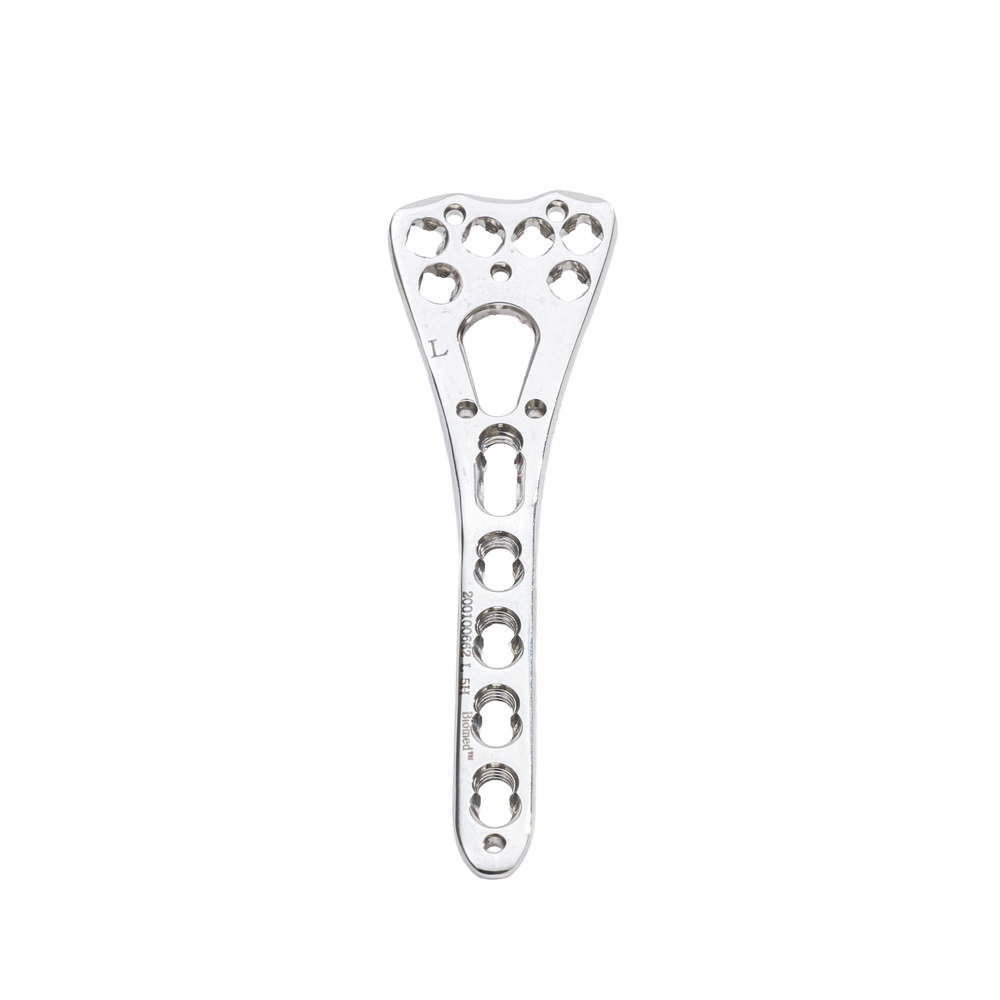

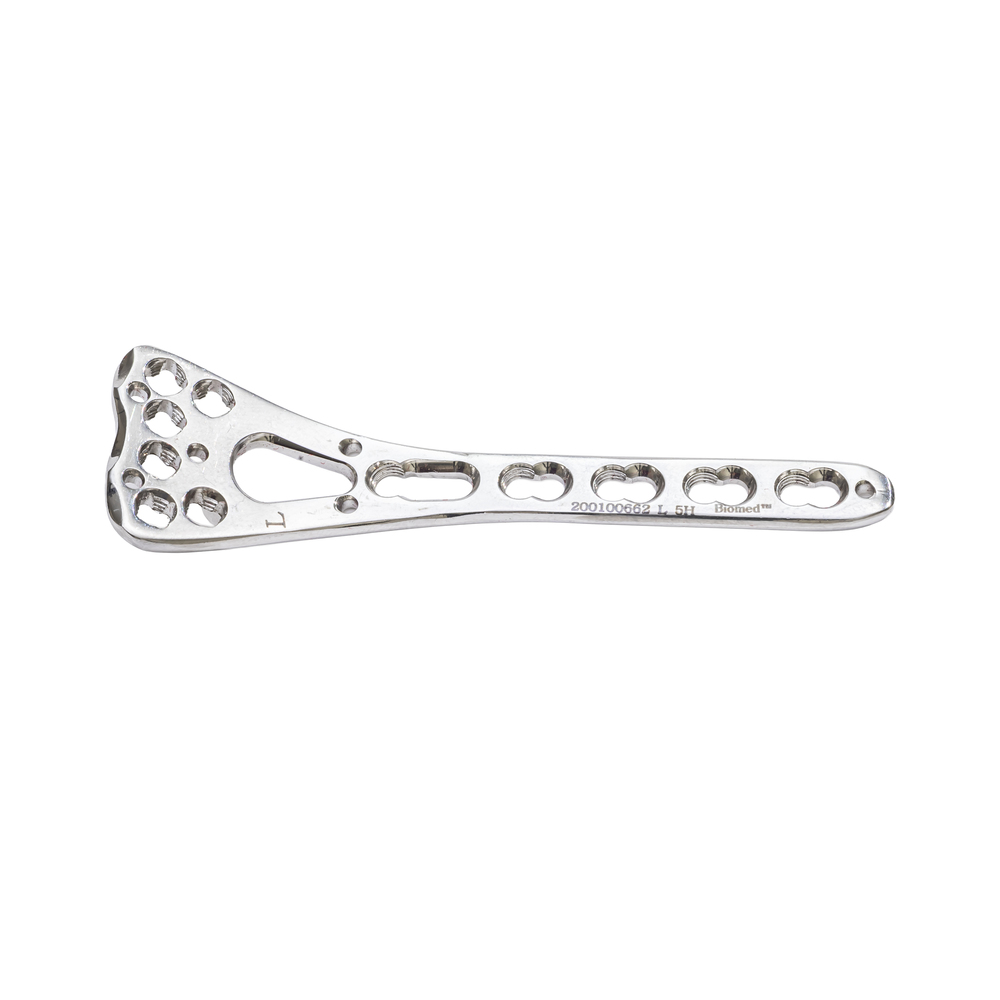

• Other, Anatomic Volar 2-Column Plate

• Recommended For
• Other, Distal Radius Fracture Fixation

• Recyclable
• No

• Soluble
• No

• Stent Location
• Distal Radius (Volar Side)

• Sterilization Mode
• EO (Ethylene Oxide) / Gamma Sterilization

• Sterilized
• Yes

• Usage
• Surgical Internal Fixation

• Weight
• Lightweight, Approx. 5-10g

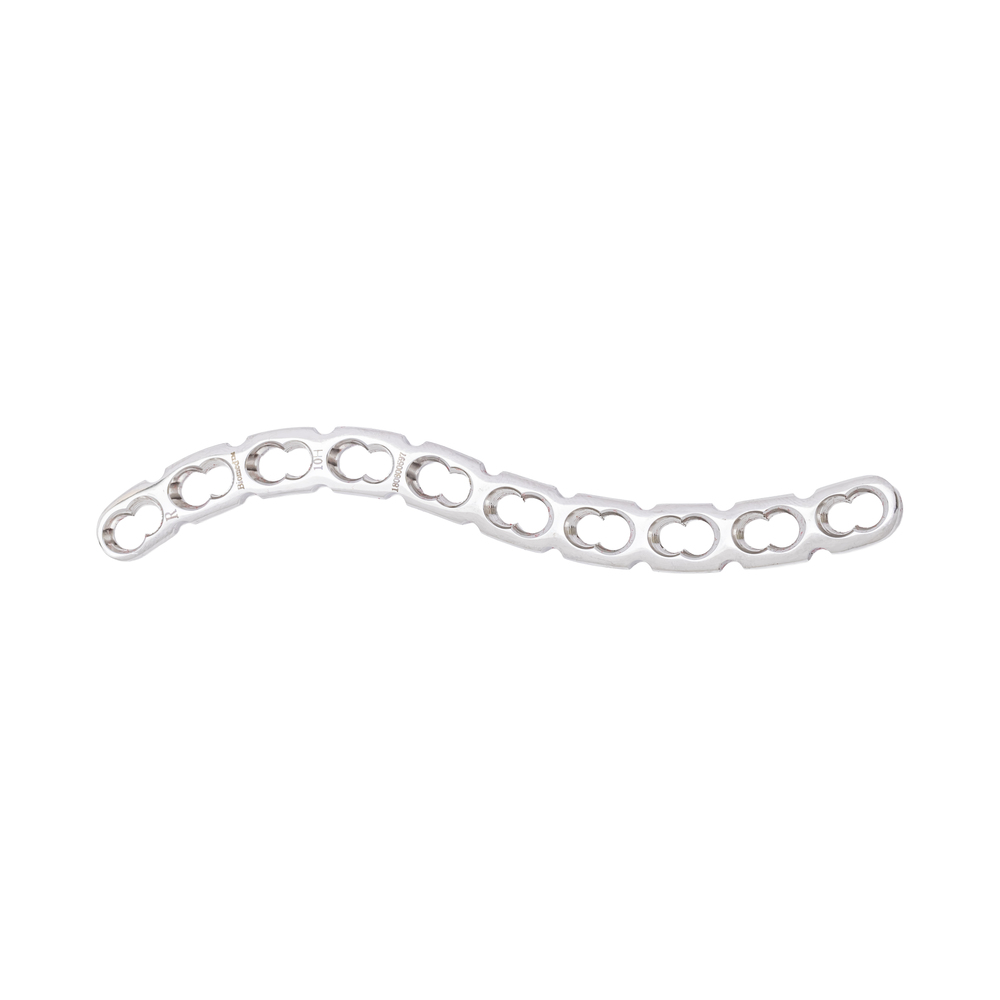

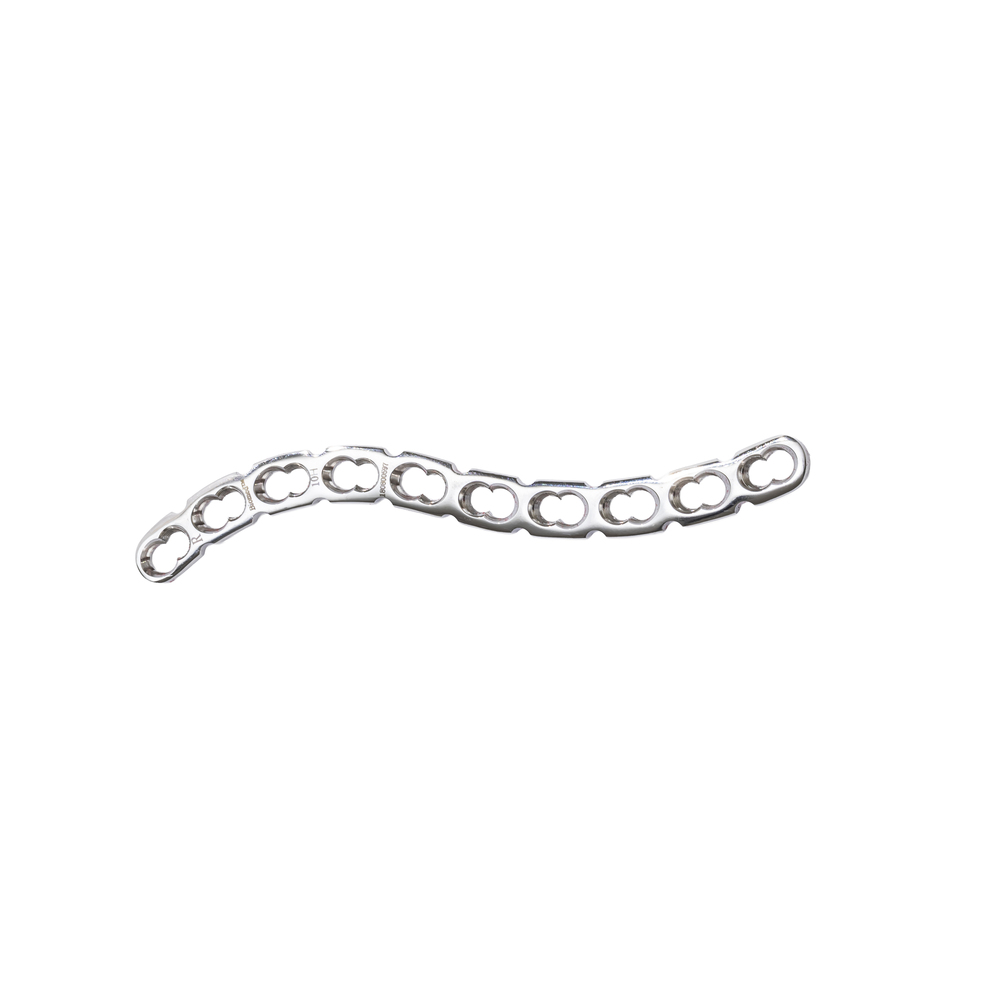

• Attachment
• Screw Fixation

• Color
• Metallic Silver or Titanium Grey

• Curved Angle
• Curved for Precise Anatomical Fit

• Diameter
• 3.5 mm Screw Compatibility

• Dimension (L*W*H)
• Varies (e.g., 82-125mm length x 10-12mm width x 3-4mm thickness)

• Flexible
• No

• Grade
• Surgical / Implant Grade

• Head Diameter
• 3.5 mm

• Implants Type

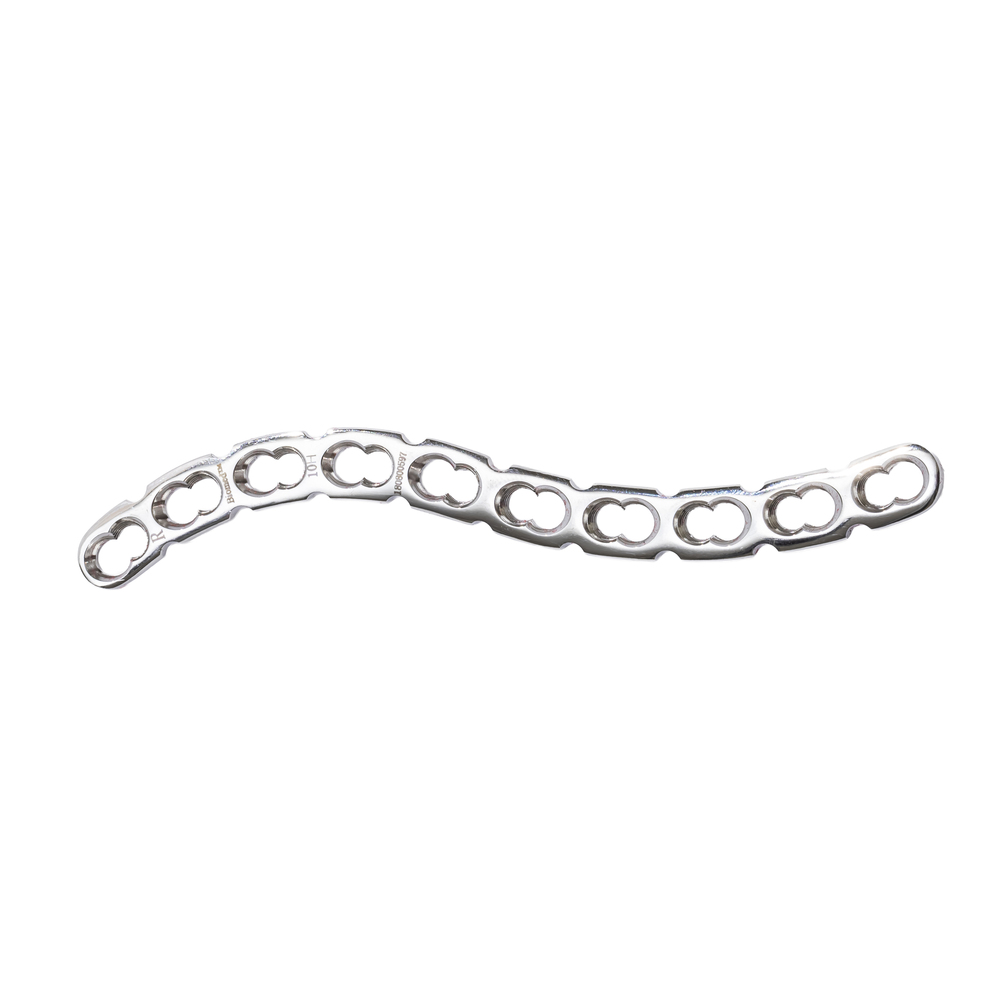

• Other, Clavicle Locking Plate

• Length
• 82 mm, 98 mm, 115 mm, 125 mm (Available in Different Lengths)

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Curved, Anatomically Contoured

• Recommended For
• Other, Clavicle fractures and reconstruction

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Clavicle (Collarbone)

• Sterilization Mode
• Gamma Ray / EO Gas

• Sterilized
• Yes

• Usage
• Orthopedic Surgical Procedures

• Weight
• Approximately 10-22 g per plate

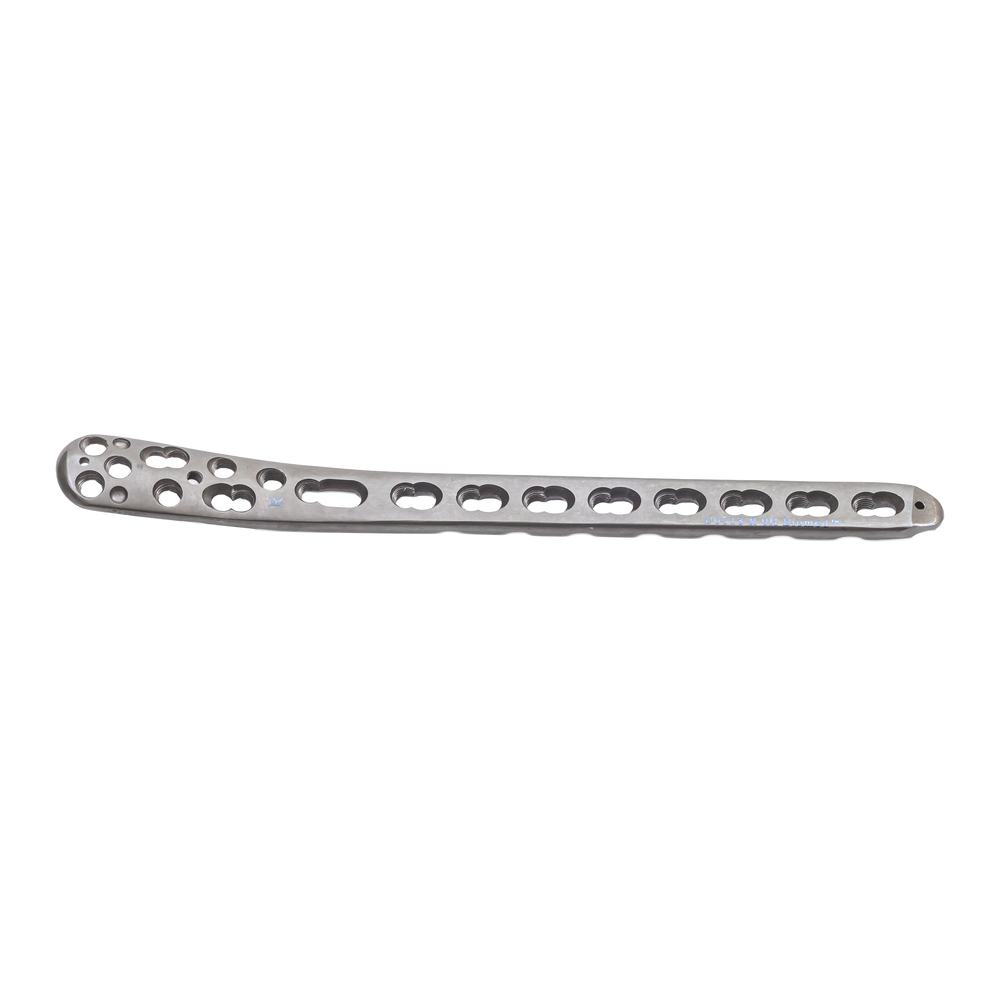

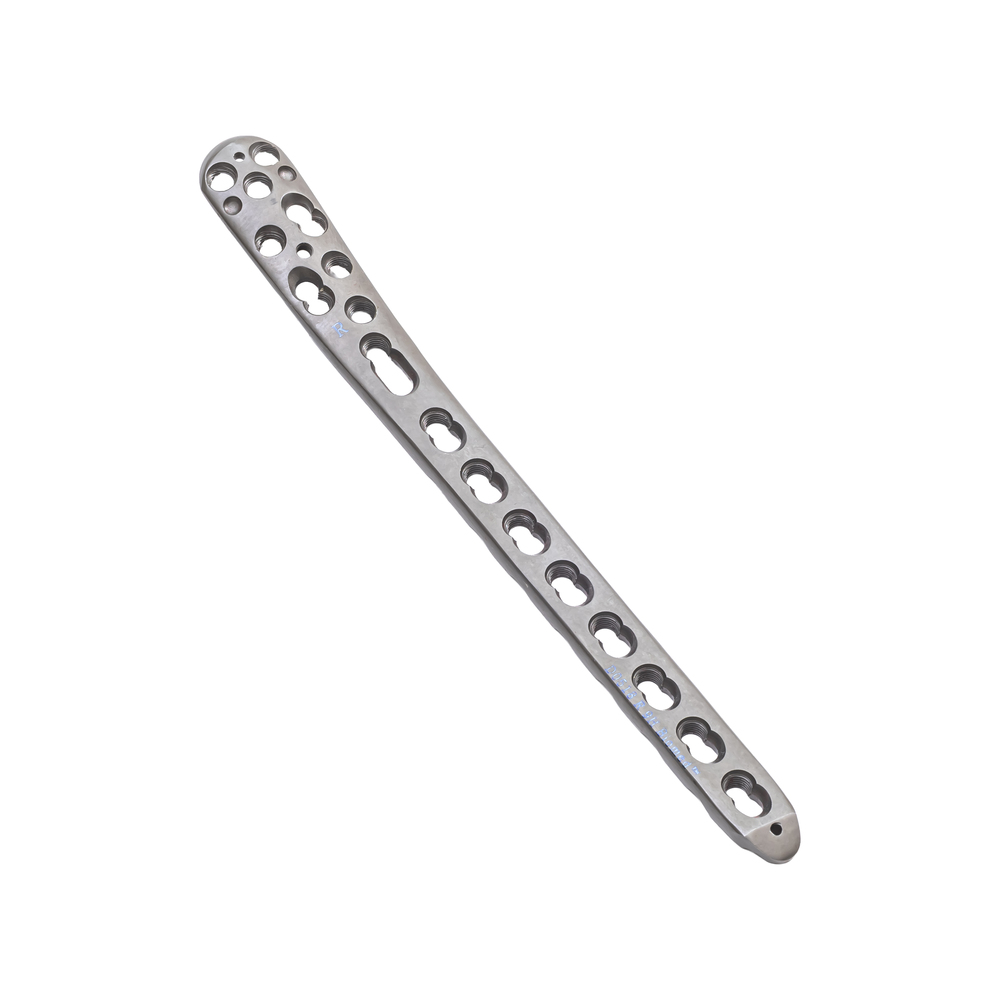

• Attachment
• Locking Screws/ Cortical Screws

• Color
• Metallic (Silver/Grey)

• Curved Angle
• Pre-contoured design with anatomical curvature

• Diameter
• Plate holes: typically 3.5 mm or 4.5 mm

• Dimension (L*W*H)
• Available in multiple sizes, e.g., 4 holes to 16 holes, length varies

• Flexible
• No

• Grade
• Medical grade 316L Stainless Steel / Titanium Ti6Al4V

• Implants Type
• Other, Orthopedic Locking Plate

• Length
• Varied, usually 95mm to 295mm

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Anatomically Contoured

• Recommended For
• Other, Distal tibia fractures, Osteotomies, Multi-fragmentary fractures

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Distal Medial Tibia

• Sterilization Mode
• Gamma Irradiation / Autoclave

• Sterilized
• Yes

• Usage
• Internal Fixation of Distal Medial Tibia

• Weight
• Varies based on plate size (approx. 30g-85g)

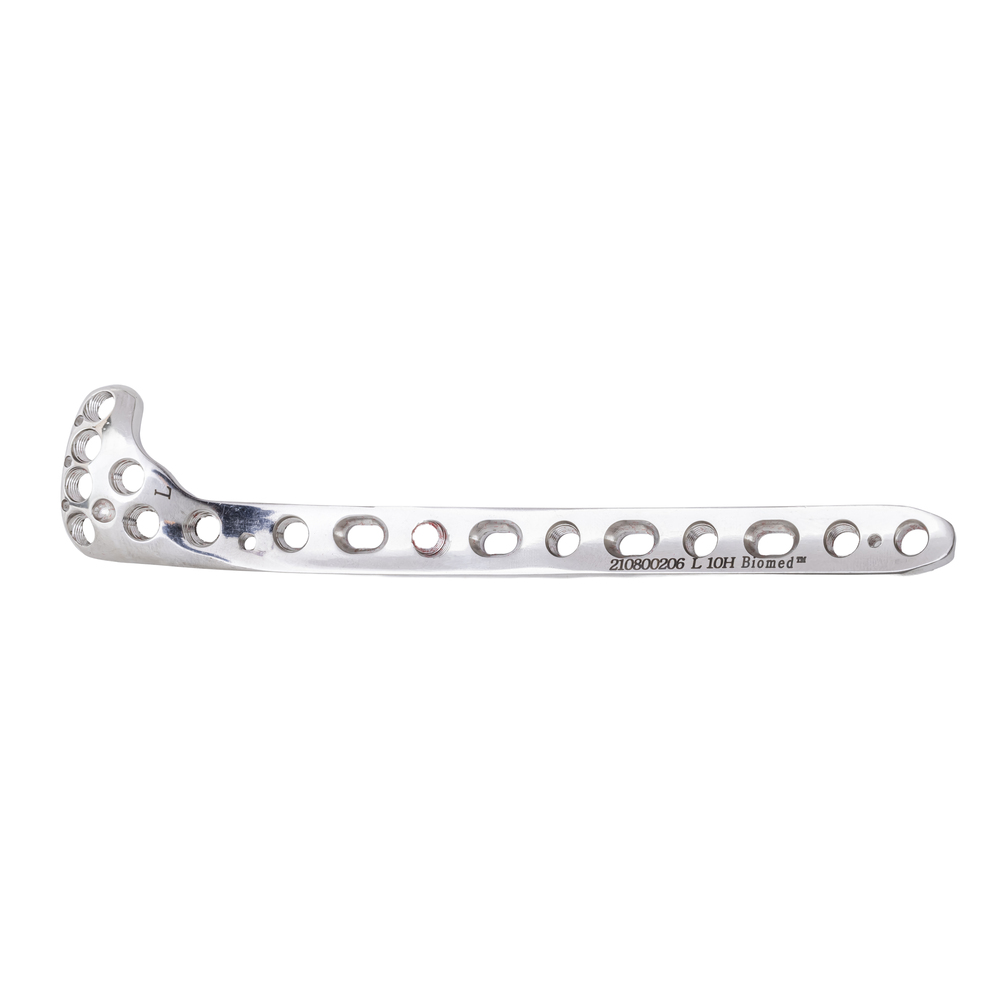

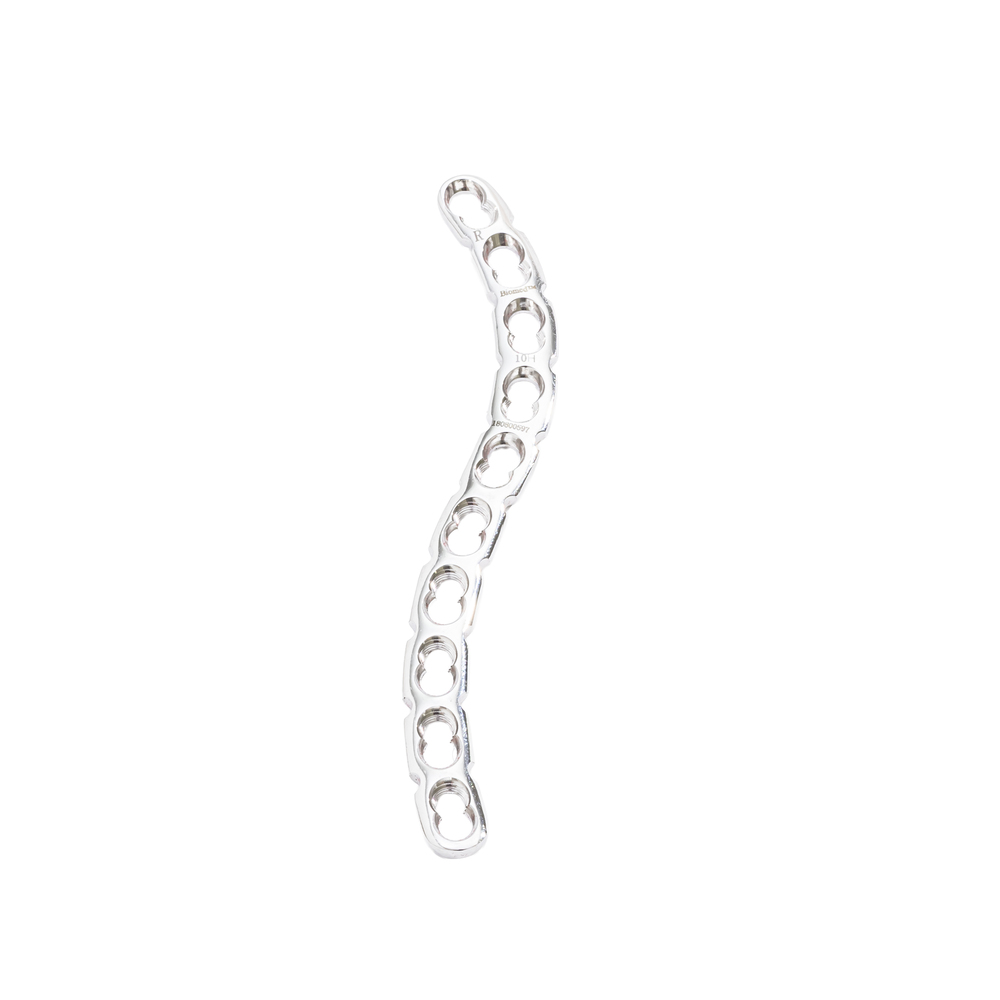

• Attachment
• 3.5mm Cortical Bone Screws

• Color
• Metallic Silver (Steel) or Grey (Titanium)

• Curved Angle
• Anatomically Contoured

• Diameter
• Holes accommodate 3.5mm Screws

• Dimension (L*W*H)
• Varies (typically 85-130 mm Length, 11-13 mm Width, 3-5 mm Height)

• Flexible
• No

• Grade
• Surgical Grade

• Head Diameter
• 3.5mm (for compatible screw heads)

• Implants Type

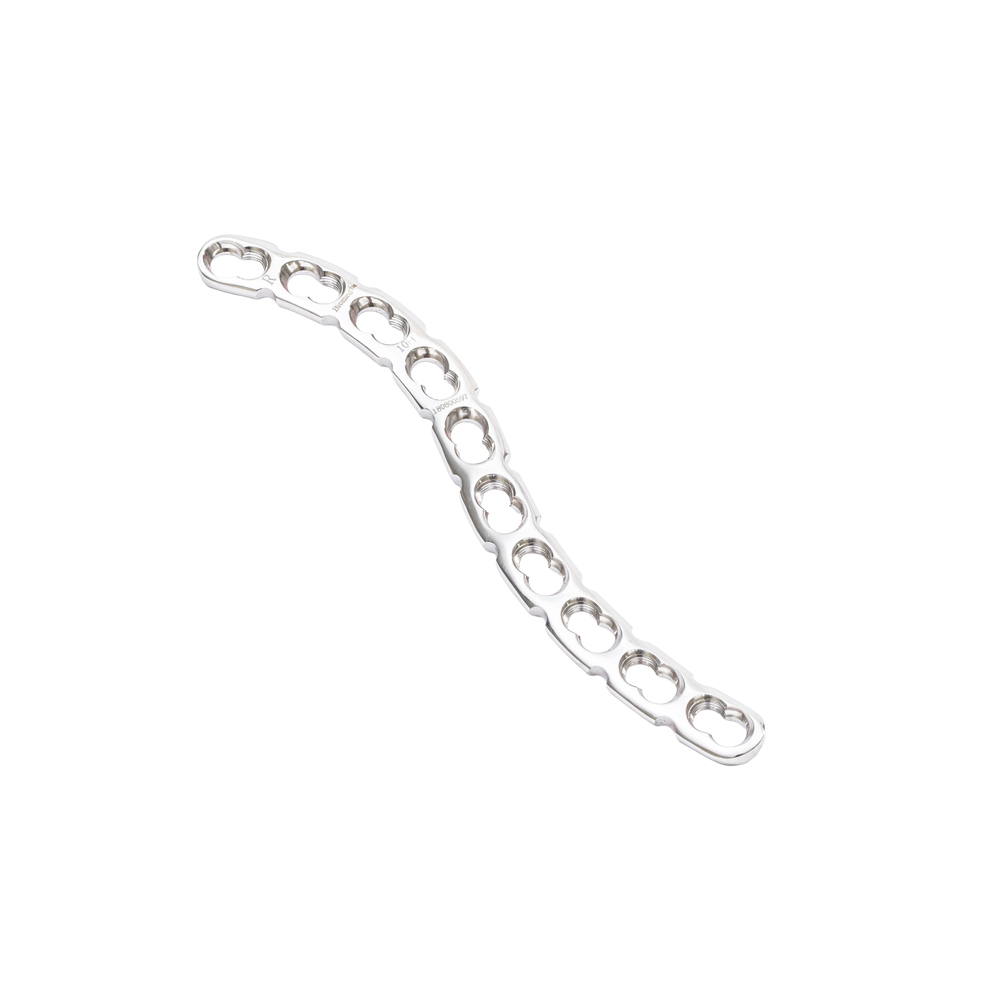

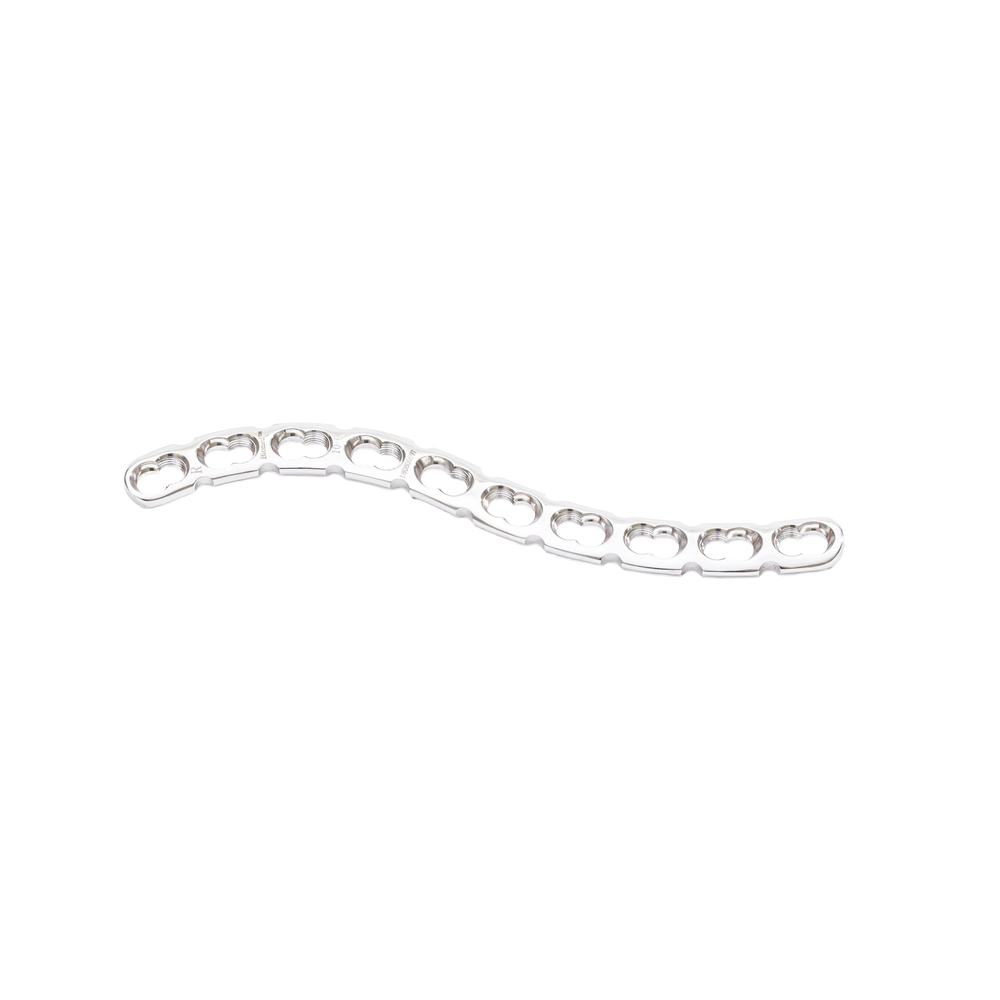

• Other, Reconstruction Curved Plate

• Length
• Available in multiple lengths (typically 4 to 16 holes)

• Material
• Other, Stainless Steel / Titanium

• Physical Shape
• Other, Curved Plate

• Recommended For
• Other, Internal Fixation of Long Bones

• Recyclable
• No

• Soluble
• No

• Stent Location
• Bone Fracture Sites

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Orthopedic Surgery

• Weight
• Approx. 12-24 grams

• Attachment
• Screw Holes for Locking or Cortical Screws

• Color
• Metallic Silver / Titanium Grey

• Curved Angle
• Anatomically Pre-contoured / Straight

• Diameter
• Hole diameter ~4.5-5.0mm

• Dimension (L*W*H)
• Available lengths: 6 to 16 holes; Width: ~10-12mm; Thickness: 5mm

• Flexible
• No

• Grade
• Medical Grade

• Implants Type
• Other, Orthopedic Plate

• Length
• Varies (typically 86mm to 229mm depending on number of holes)

• Material
• Other, Stainless Steel 316L or Titanium Alloy

• Physical Shape
• Other, Narrow Locking Compression Plate

• Recommended For
• Other, Fracture Fixation of Long Bone

• Recyclable
• No

• Soluble
• No

• Stent Location
• Long Bone (Femur, Tibia, Humerus)

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Orthopedic Surgery, Internal Fixation

• Weight
• Varies with length, approx. 35-90g

• Attachment
• Locking holes for cortical/locking screws

• Color
• Metallic Silver

• Curved Angle
• Anatomic pre-contoured (Variable - fits radius geometry)

• Diameter
• Screw holes diameter: 2.4mm/2.7mm standard

• Dimension (L*W*H)
• Varies (commonly 3.5mm x 65-90mm x 1.5mm)

• Flexible
• No

• Grade
• Surgical Grade (AISI 316L/316LVM)

• Head Diameter
• Plate head thickness: approx. 2.0mm

• Implants Type
• Other, Distal Radius Locking Plate

• Length
• Varies (typically 65mm-90mm)

• Material
• Other, Stainless Steel (SS)

• Physical Shape
• Other, Anatomic, T-shaped plate

• Recommended For
• Other, Orthopedic fracture fixation, Distal Radius surgery

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Distal Radius (Wrist)

• Sterilization Mode
• Autoclave

• Sterilized
• Yes

• Usage
• Internal fixation of distal radius fractures

• Weight
• Approx. 14-28g (depends on size)

• Attachment
• Screw Fixation (3.5mm Cortex or Cancellous screws)

• Color
• Metallic Silver

• Curved Angle
• Anatomically contoured

• Diameter
• Screw Holes - suitable for 3.5mm screws

• Dimension (L*W*H)
• Varies by holes (Length: 51mm to 237mm, Width: 11mm, Thickness: 4mm)

• Flexible
• No

• Grade
• Medical Grade Titanium (Ti-6Al-4V)

• Head Diameter
• Plate hole diameter ~4.0mm

• Implants Type
• Other, Bone Plate

• Length
• 51mm-237mm (varies by number of holes)

• Material
• Titanium

• Physical Shape
• Other, Low Contact Dynamic Compression Plate (LC DCP)

• Recommended For
• Other, Fracture Fixation, Small Bone Surgery

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Orthopedic (Small Bone, Upper and Lower Limbs)

• Sterilization Mode
• EO Gas / Autoclave

• Sterilized
• Yes

• Usage
• Surgical, Orthopedic Internal Fixation

• Weight
• Lightweight (2g - 15g depending on length)

• Attachment
• Screw Locking Holes

• Color
• Metallic Silver or Customized (Anodized)

• Curved Angle
• Anatomic Curved, Varies By Plate

• Diameter
• Standard Hole Diameter 4.5mm or as specified

• Dimension (L*W*H)
• Available in Various Sizes such as 4.5mm, 5.0mm, 6.5mm Thickness

• Flexible
• No

• Grade
• Medical Grade (ASTM F138 / F67 / ISO 5832)

• Implants Type
• Other, Orthopedic Locking Plate

• Length
• Varies (Usually 80mm to 320mm)

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Rectangular with Multiple Holes (Anatomic Contoured Shape)

• Recommended For
• Other, Fracture Fixation and Bone Reconstruction

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Bone (Femur, Tibia, Humerus, etc.)

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Orthopedic Surgery

• Weight
• Varies By Specification (Typically 40g - 150g)

• Attachment
• Screw Holes

• Color
• Metallic Grey (Titanium) / Silver (Steel)

• Curved Angle
• Pre-contoured for anatomical fit

• Diameter
• Screw hole diameter: 3.5 mm / 4.5 mm (dependent on model)

• Dimension (L*W*H)
• Varies: 40 mm - 200 mm (L), 8 mm - 14 mm (W), 2 mm - 5 mm (H)

• Flexible
• No

• Grade
• Medical Grade Stainless Steel 316L / Titanium Ti-6Al-4V

• Implants Type
• Other, Reconstruction Curved Plate

• Length
• 40 mm to 200 mm

• Material
• Other, Stainless Steel / Titanium

• Physical Shape
• Other, Curved Plate

• Recommended For
• Other, Fracture Fixation and Bone Reconstruction

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Orthopedic / Trauma

• Sterilization Mode
• Autoclave / Gamma Radiation

• Sterilized
• Yes

• Usage
• Surgical Fixation of Bones

• Weight
• Approx. 10-48 grams (Depending on size)

• Attachment
• Screw holes for locking and cortical screws

• Color
• Metallic Silver (Stainless Steel) / Metallic Grey (Titanium)

• Curved Angle
• Pre-contoured to fit volar distal radius anatomy

• Diameter
• 2.4mm (screw diameter)

• Dimension (L*W*H)
• Approximately 60mm x 10mm x 2.4mm

• Flexible
• No

• Grade
• Surgical Grade (316L Stainless Steel or Ti-6Al-4V Titanium)

• Head Diameter
• 3.0mm (proximal plate head region)

• Implants Type
• Other, Orthopedic Plate

• Length
• 6 holes (standard plate length)

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Anatomically contoured plate with volar 2 column structure

• Recommended For
• Other, Distal radius fractures and osteotomies

• Recyclable
• No

• Soluble
• No

• Stent Location
• Distal Radius

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Internal Fixation of Distal Radius

• Weight
• Approx. 18g

• Attachment
• 3.5mm Cortical Screws

• Color
• Metallic Silver/Grey

• Curved Angle
• Manually Contoured by Surgeon

• Diameter
• Holes for 3.5mm Screws

• Dimension (L*W*H)
• Available in Various Lengths, Typically ~3-6mm Width, 2-4mm Thickness

• Flexible
• Other, Yes (Highly Contourable for Anatomical Fit)

• Grade
• Medical Grade (Ti-6Al-4V or equivalent)

• Head Diameter
• Compatible with 3.5mm Screw Head

• Implants Type
• Other, Reconstruction Plate

• Length
• Multiple Lengths Available (Usually 4-14 Holes, Customizable)

• Material
• Titanium

• Physical Shape
• Other, Flat Plate with Pre-contoured Grooves and Holes

• Recommended For
• Other, Bone Reconstruction, Fracture Fixation, Orthopedics

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Bone (Orthopedic, Trauma, Fracture Repair)

• Sterilization Mode
• Gamma Radiation / Autoclave

• Sterilized
• Yes

• Usage
• Internal Fixation of Bone, Surgical Procedures

• Weight
• Lightweight (Varies by Size)

• Attachment
• Multiple Screw Holes for Secure Fixation

• Color
• Metallic / Silver (Titanium or Stainless Steel finish)

• Curved Angle
• Anatomically Pre-contoured for Posterior Tibia

• Diameter
• Screw holes 3.5mm compatible

• Dimension (L*W*H)
• Various sizes available (Customizable as per requirement)

• Flexible
• No

• Grade
• Surgical Grade

• Implants Type
• Other, Orthopaedic Surgical Plate

• Length
• Available in multiple lengths (Typically 70mm - 220mm)

• Material
• Other, Stainless Steel / Titanium

• Physical Shape
• Other, Contoured Plate with Multiple Holes

• Recommended For
• Other, Tibial Plateau and Posterior Tibia Fractures

• Recyclable
• No

• Soluble
• No

• Stent Location
• Posterior Medial Tibia

• Sterilization Mode
• Gamma Ray / ETO / Autoclave

• Sterilized
• Yes

• Usage
• Internal Fixation in Orthopaedic Surgery

• Weight
• Depends on size and material (Typically 18-35 gm)

• Attachment
• Screw fixation

• Color
• Metallic (Silver, Titanium Grey)

• Curved Angle
• Designed to match proximal humerus anatomy

• Diameter
• Screw holes: 3.5/4.0 mm

• Dimension (L*W*H)
• Variable (typically 3-10 holes, length 90-166 mm)

• Flexible
• No

• Grade
• Surgical grade 316L stainless steel / Ti-6Al-4V

• Head Diameter
• Wider head for proximal bone support

• Implants Type
• Other, Orthopedic Trauma Locking Plate

• Length
• 90-166 mm

• Material
• Other, Stainless Steel / Titanium Alloy

• Physical Shape
• Other, Anatomically contoured, low-profile

• Recommended For
• Other, Proximal humerus fractures, osteoporosis patients, multi-fragmentary fractures

• Recyclable
• Yes

• Soluble
• No

• Stent Location
• Proximal Humerus

• Sterilization Mode
• Gamma / ETO / Autoclave

• Sterilized
• Yes

• Usage
• Surgical internal fixation

• Weight
• Approx. 25-50 grams depending on size
